DNM 4500 (4th Gen) CNC Vertical Machining Centers DN Solutions

DNM 4500 (4th Gen) CNC Vertical Machining thumb

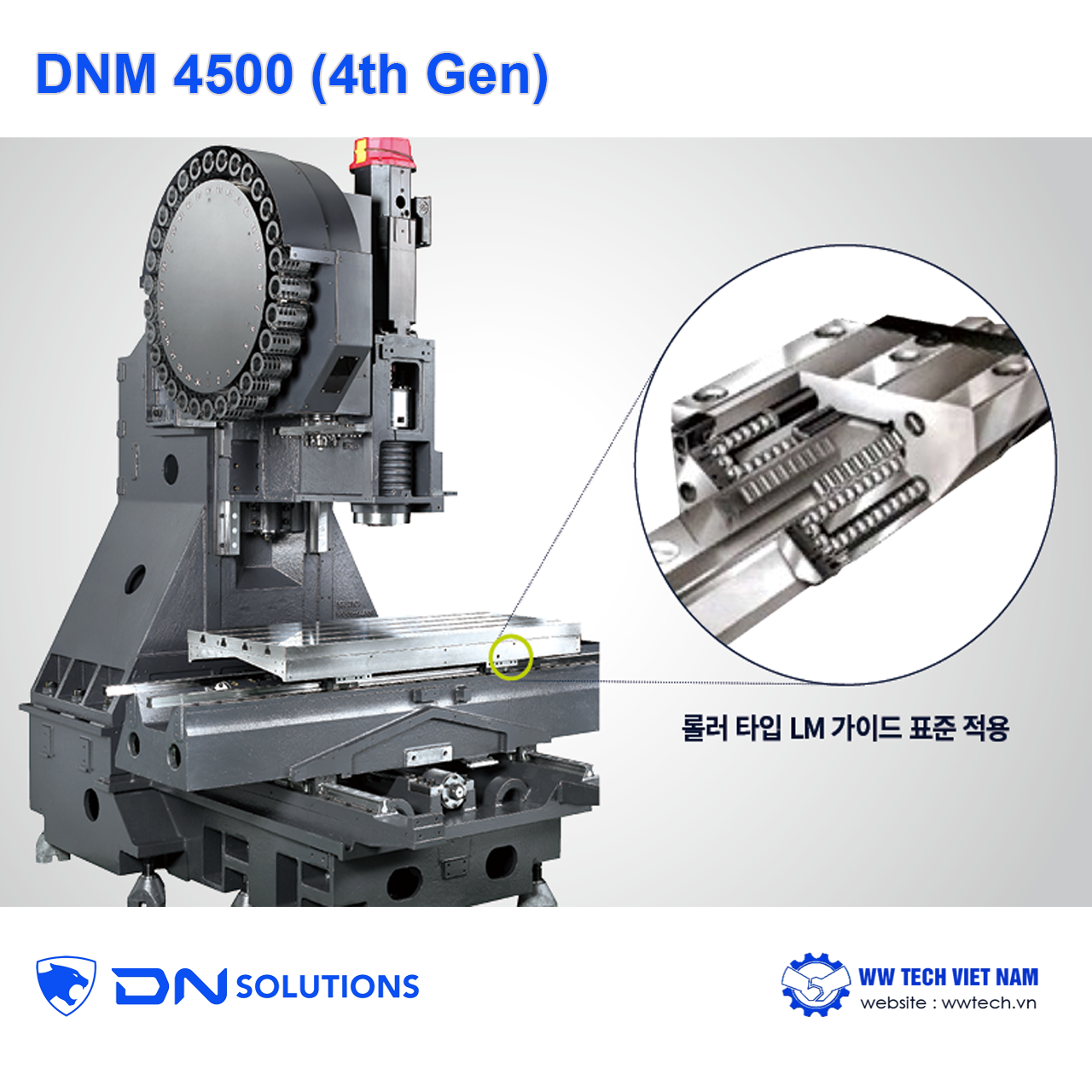

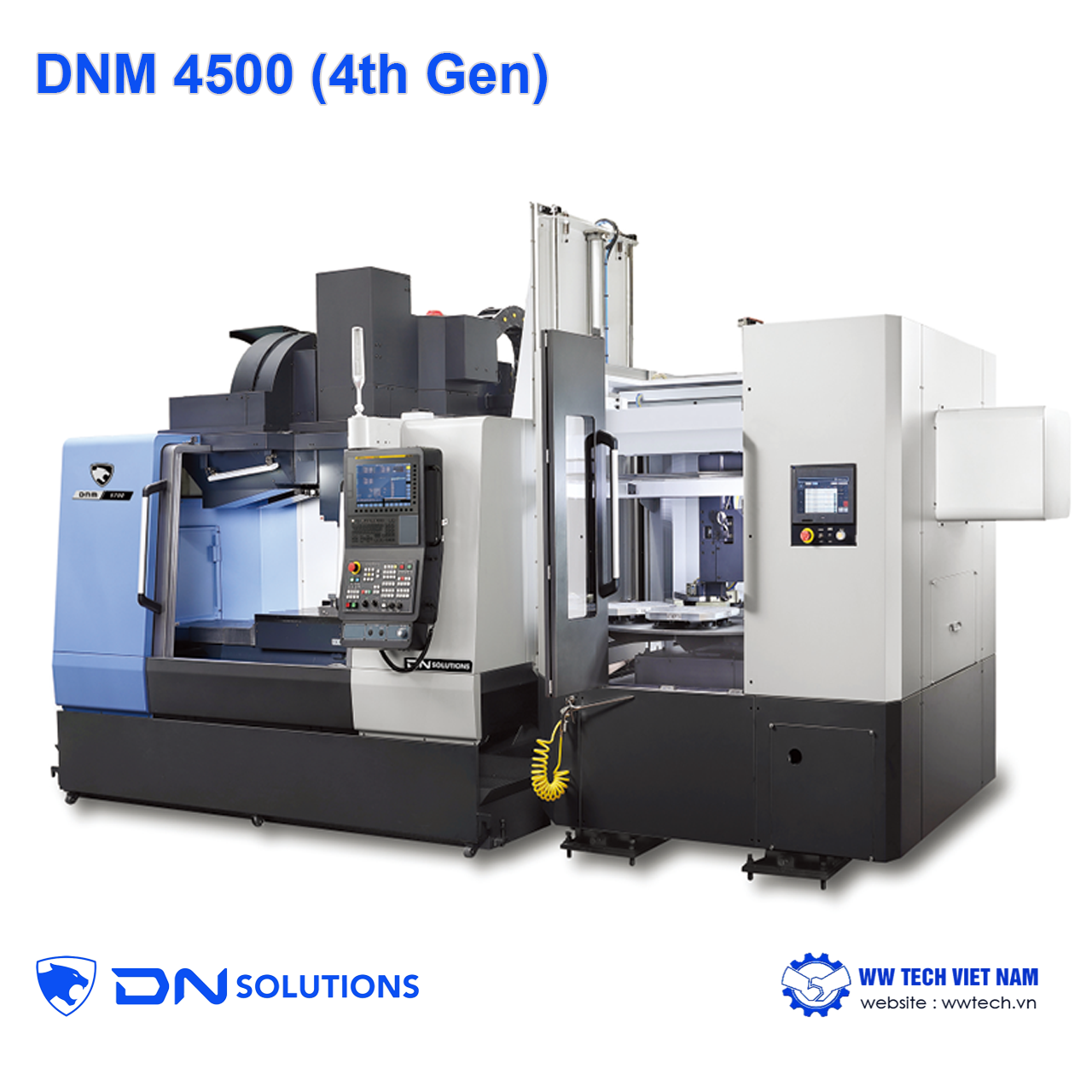

DNM 4500 (4th Gen) CNC Vertical Machining
Post on 21-06-2025 03:40:01 AM - 873 Views
Product code: P000007
DNM 4500 (4th Gen),

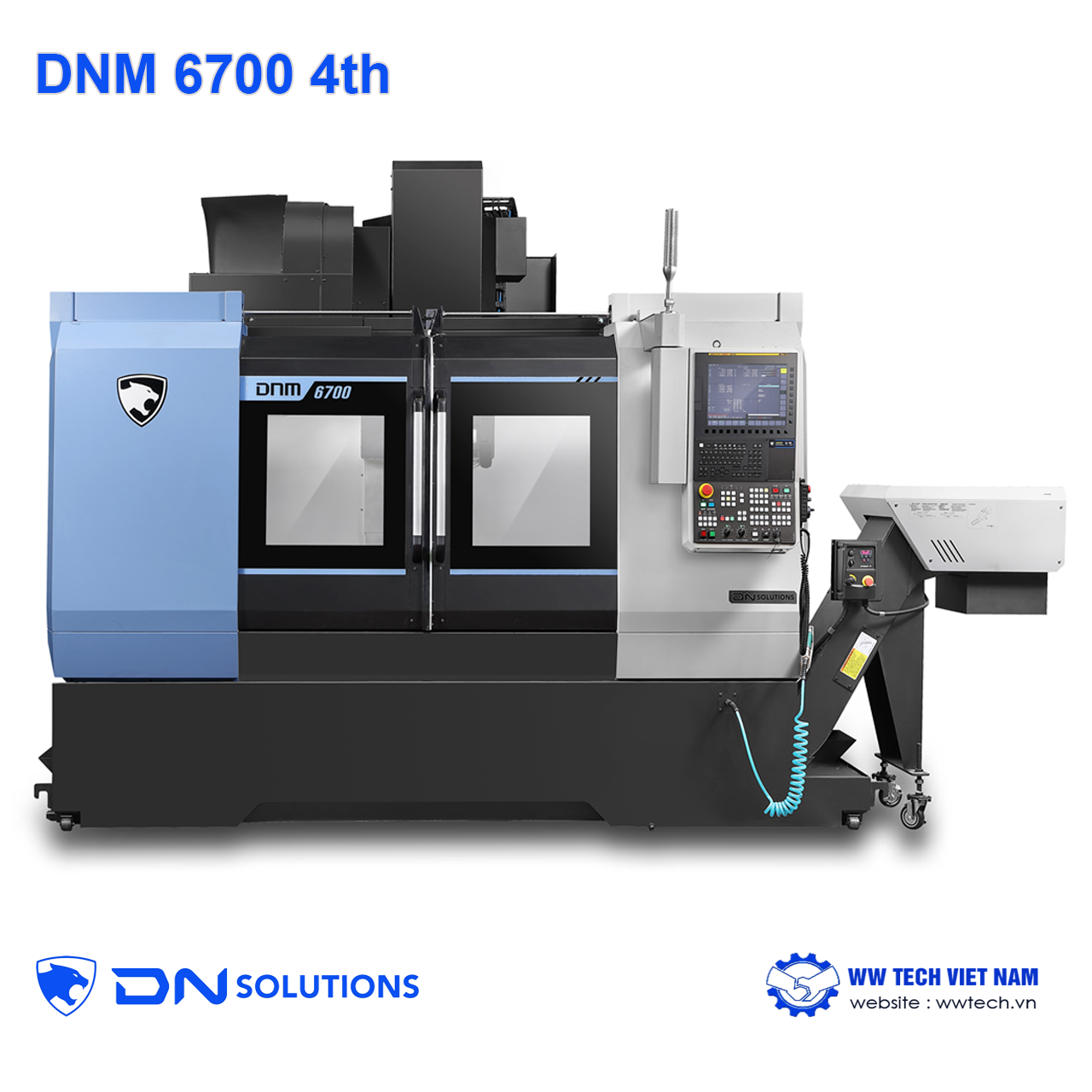

DNM 4500 th, DNM 5700 4th, DNM 6700 4th
High Productivity Global Standard Vertical machining center
Used by numerous customers around the world, the DNM series is a global bestseller that represents the culmination of DN Solutions' fifty years of technology and know-how, and is a market leader with the highest productivity and durability in its class. With DN Solutions' 4th DNM series, you will experience unrivaled reliability.
- Reliability
- Excellent Machining Capability
- High Precision
- Stability

details

SPECIFICATIONS

METRIC	DNM 4500 4th	DNM 5700 4th	DNM 6700 4th
X-axis travel	800 mm	1050 mm	1300 mm
Y axis travel	450 mm	570 mm	670 mm
Z axis travel	510 mm	510 mm	625 mm
X-axis Rapid speed	42 m/min	42 m/min	36 m/min
Y axis Rapid speed	42 m/min	42 m/min	36 m/min
Z axis Rapid speed	36 m/min	36 m/min	30 m/min
Maximum spindle speed	8000 rpm	8000 rpm	15000 rpm
Maximum spindle power	18,5 kW	18,5 kW	18,5 kW
Maximum spindle torque	117,8 N-m	117,8 N-m	117,8 N-m
Tool Taper	ISO #40	ISO #40	ISO #40
Table length	800 mm	1050 mm	800 mm
Table Width	450 mm	570 mm	450 mm
Maximum workpiece weight	600 kg	1000 kg	600 kg
Length	2200 mm	2470 mm	2670 mm
Height	2980 mm	2980 mm	3095 mm
Width	2835 mm	3320 mm	3560 mm
Weight	5000 kg	6500 kg	8500 kg

DNM 4500 (4th Gen)

🧰 WW Tech Vietnam is an authorized distributor of DN Solutions
. We are committed to bringing customers: 100% genuine products, clear origin
🔷 Fast delivery time, meeting production schedule.
🔷 Optimal cost, competitive in the market.
🔷 In-depth technical service, long-term support with a team of senior technicians, engineers with deep expertise, trained abroad, knowledgeable about DN Solutions machine lines and popular CNC control systems.
🔷 Clear warranty policy, 24/7 technical support, quick response to all customer requests.

📢 Precision mechanical processing enterprises, Factories manufacturing industrial equipment, molds, electronic components. Industrial parks, export processing zones, CNC machining centers... are interested in the products: DNM 4500 (4th Gen), DN Solutions' 4th generation DNM : DNM 4500 th, DNM 5700 4th, DNM 6700 4th
Want to know more details about these products.
Please contact us immediately for support.

Keyword: DNM 4500 4th Gen, DNM 4500 th, DNM 5700 4th, DNM 6700 4th, CNC Vertical Machining
