Product code: DNM 6700
The DNM 6700 series by DN Solutions is a global standard Vertical Machining Center, featuring the largest machining space in its class, delivering high productivity and precision.
Similar to the DNM 5700 series, the DNM 6700 is also equipped with a direct-coupled spindle that helps reduce vibration and noise, uses an environmentally friendly grease lubrication system for the roller guideways, and integrates a standard thermal error compensation system.
The DNM 6700 series is divided into 3 main versions based on the X-axis travel length: DNM 6700 (Standard), DNM 6700L (Extended), and DNM 6700XL (Extra Large travel).

details

1. Technical Specifications of the Versions

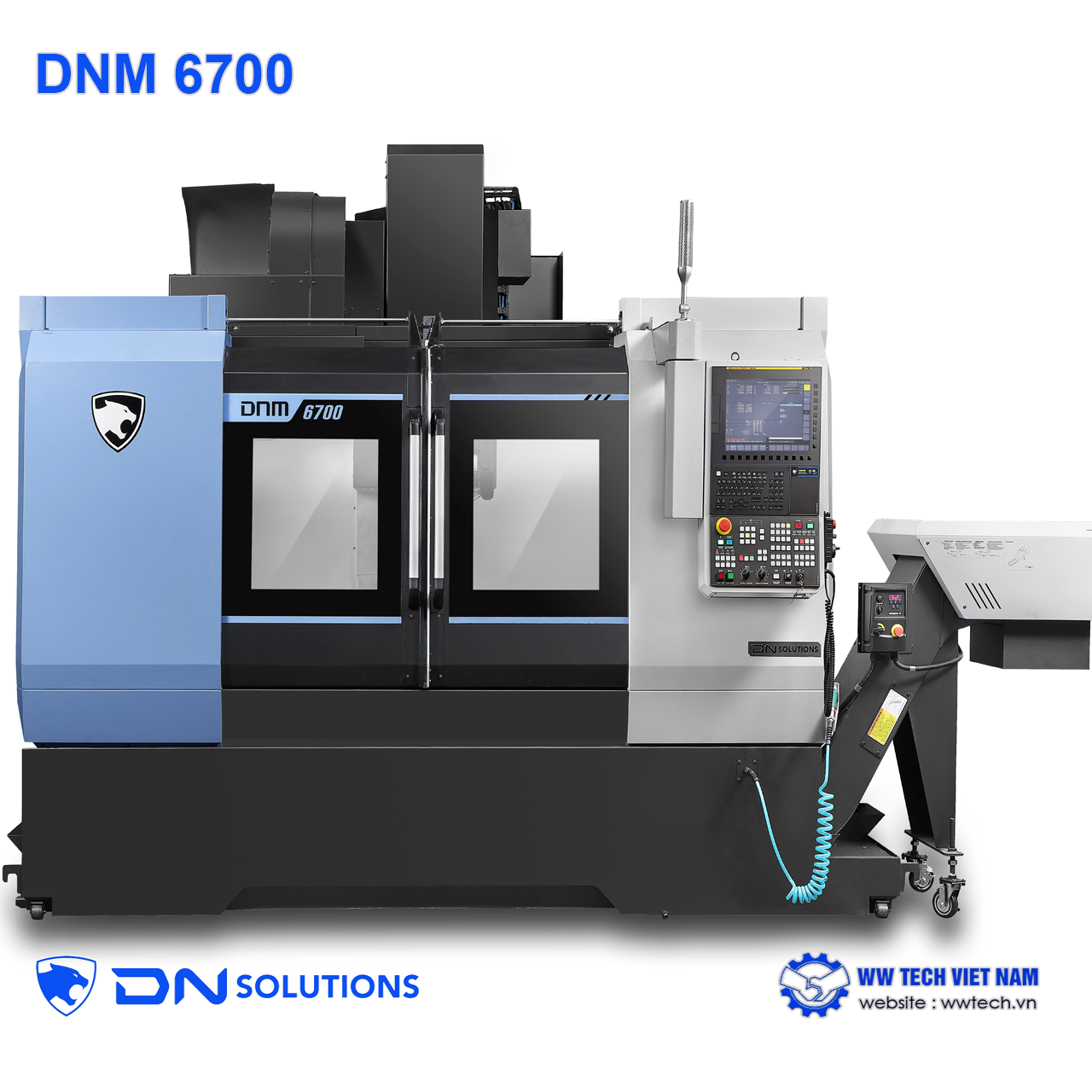

DNM 6700 (Standard Version):
- Axis travel distance (X / Y / Z): 1300 / 670 / 625 mm.
- Rapid Traverse (X / Y / Z): 36 / 36 / 30 m/min.
- Table size: 1500 x 670 mm, maximum load capacity up to 1300 kg.
- Dimensions and weight: Dimensions (Length x Width x Height) 2597 x 3350 x 3120 mm, weight 8500 kg
.

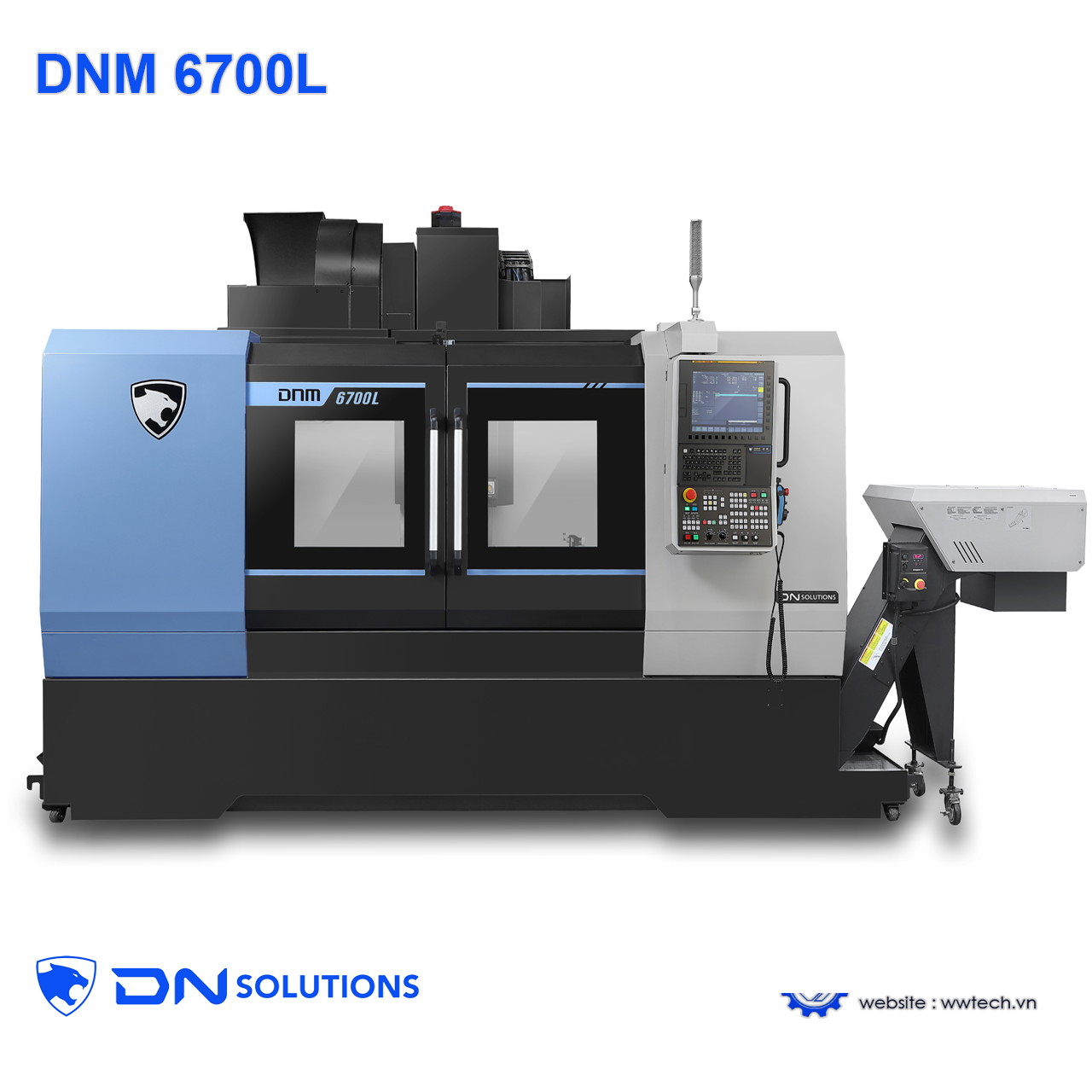

DNM 6700L (Extended X-axis travel to 1.5 meters):
- Axis travel distance (X / Y / Z): 1500 / 670 / 625 mm.
- Rapid Traverse (X / Y / Z): 36 / 36 / 30 m/min.
- Table size: 1600 x 670 mm, maximum load capacity 1300 kg.
- Dimensions and weight: Dimensions (Length x Width x Height) 2597 x 3650 x 3120 mm, weight reaches 9000 kg.

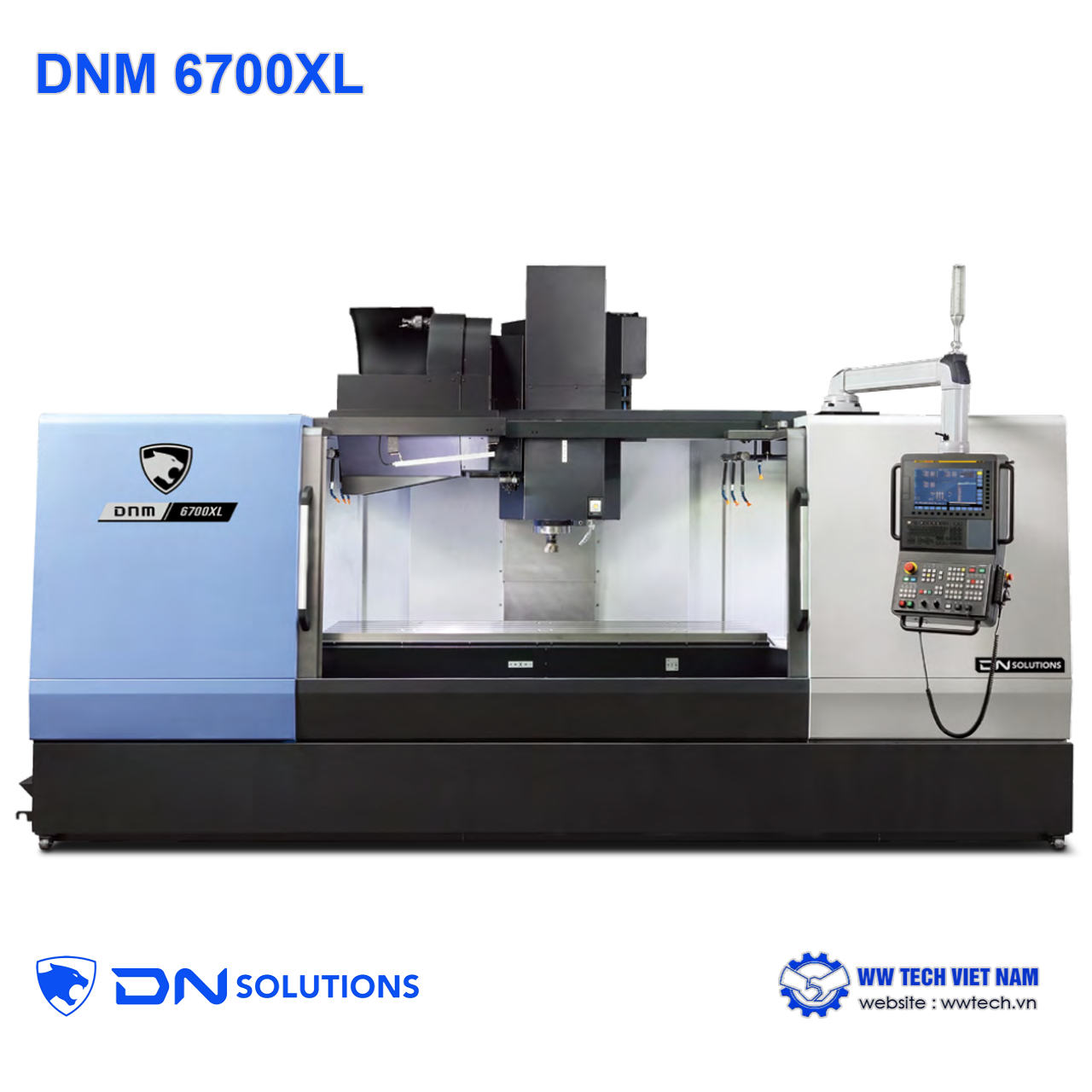

DNM 6700XL (Extra large X-axis travel up to 2.1 meters):
- Axis travel distance (X / Y / Z): 2100 / 670 / 625 mm.
- Rapid Traverse (X / Y / Z): 30 / 30 / 30 m/min (slightly reduced compared to the two versions above due to the large machine frame size).
- Table size: Very large, reaching 2200 x 670 mm, maximum load capacity 1300 kg.
- Dimensions and weight: Dimensions (Length x Width x Height) 2970 x 4800 x 3120 mm, machine weight reaches 10,000 kg.

Specifications	DNM 6700	DNM 6700L	DNM 6700XL
TRAVELS
X-Axis Travel Distance	1300 mm	1500 mm	2100 mm
Y-Axis Travel Distance	670 mm	670 mm	670 mm
Z-Axis Travel Distance	625 mm	625 mm	625 mm
FEED RATES
X-Axis Rapid Traverse	36 m/min	36 m/min	30 m/min
Y-Axis Rapid Traverse	36 m/min	36 m/min	30 m/min
Z-Axis Rapid Traverse	30 m/min	30 m/min	30 m/min
MAIN SPINDLE
Max. Spindle Speed	8000 r/min	8000 r/min	8000 r/min
Max. Spindle Power	18.5 kW	18.5 kW	18.5 kW
Max. Spindle Torque	117.8 N·m	117.8 N·m	117.8 N·m
Tool Taper	ISO #40{7/24 TAPER}	ISO #40{7/24 TAPER}	ISO #40{7/24 TAPER}
TABLE
Table Length	1500 mm	1600 mm	2200 mm
Table Width	670 mm	670 mm	670 mm
Maximum Workpiece weight	1300 kg	1300 kg	1300 kg
DIMENSIONS
Length	2597 mm	2597 mm	2970 mm
Height	3120 mm	3120 mm	3120 mm
Width	3350 mm	3650 mm	4800 mm
Weight	8500 kg	9000 kg	10000 kg

2. Spindle System
- All 3 versions use a standard ISO #40 (7/24 Taper) tool shank spindle.
- The standard spindle speed is 8000 r/min (with upgrade options to 12000 or 15000 r/min).
- The spindle power reaches 18.5 kW (equivalent to 24.8 Hp) and the torque reaches 117.8 N·m. DN Solutions also offers a high-torque optional version reaching up to 286 N·m.

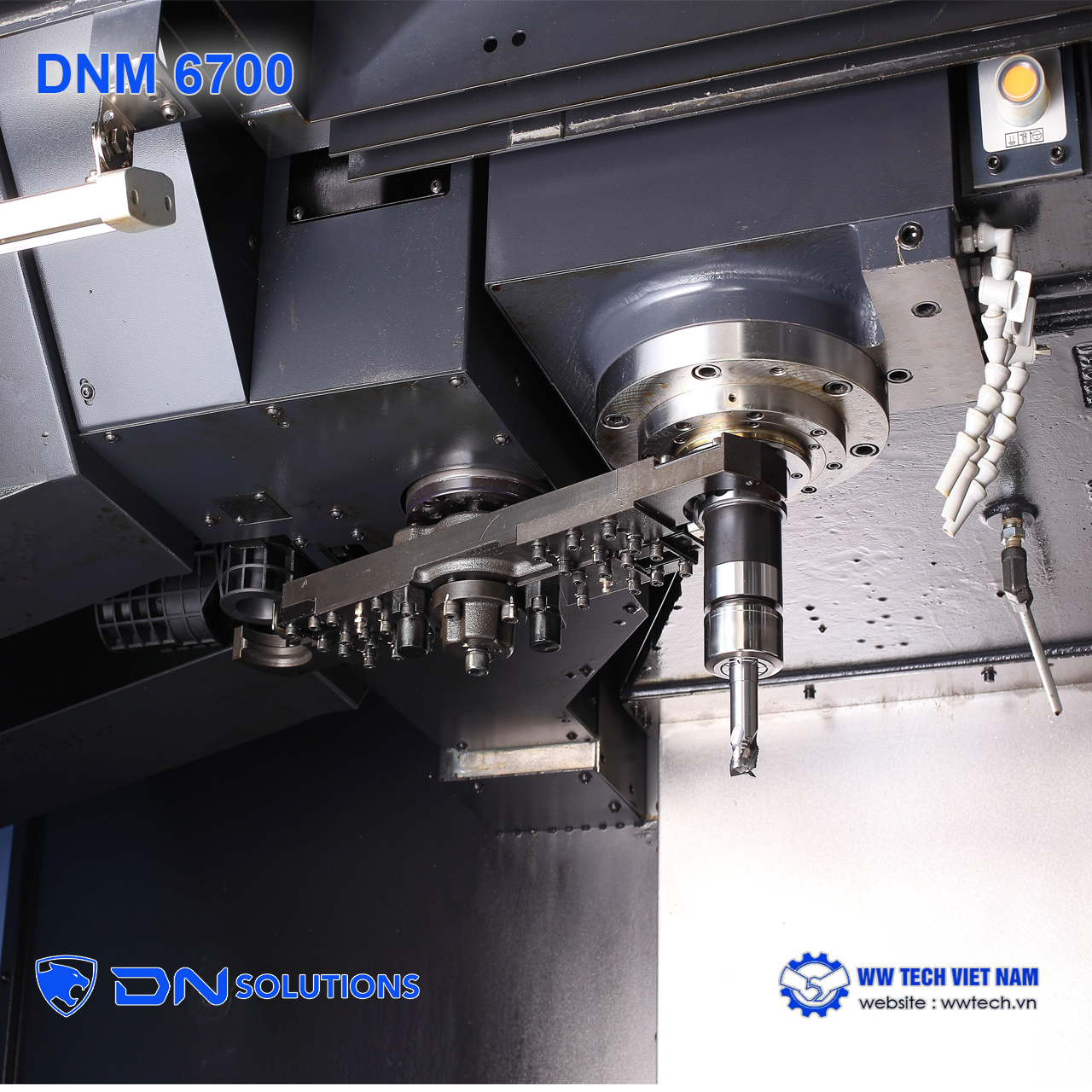

3. Automatic Tool Changer (ATC) System
- Tool storage capacity: Standard 30 tools (with options for 40 or 60 tools).
- Tool change speed: Tool-to-Tool time reaches 1.2 seconds and Chip-to-Chip time is approximately 3.5 seconds.
4. Control Software and Automation
- CNC Controller: Supports a variety of popular controllers such as DN Solutions FANUC i Plus (with a 15-inch iHMI screen), SIEMENS S828D (15.6-inch screen), HEIDENHAIN TNC620 (15.6-inch screen), and MITSUBISHI M80A.
- Support Software: Integrated with DN Solutions' exclusive EZ Work software package, which supports thermal compensation, adaptive feed control, cycle setup guidance, and intuitive tool life management.
- Automation Capability: Similar to the 4500 and 5700 series, the DNM 6700 machine also perfectly connects with the AWC (Auto Work-piece Changer) system (including the Multi Level version) with a large pallet storage capacity, ideally supporting 24/7 continuous mass automated production.

5. Machining Materials
Thanks to being equipped with flexible spindle options (including high-speed spindles and high-torque spindles), the DNM 6700 series effectively handles a variety of industrial materials:
- Steel: The machine processes steel very well, especially when combined with the hinged belt chip conveyor configuration to clean up long cutting chips.
- Cast Iron / Die-casting materials: This series is supported by the optional magnetic scraper chip conveyor configuration, which is ideally designed to handle fine chips generated from the machining process of cast iron materials or cast parts.
- Aluminum / Aluminum alloys: The DNM series in general is frequently used to machine aluminum materials.
6. Machining Products and Applications
As a General Purpose machine series delivering high productivity and precision, the DNM 6700 series targets parts that are significantly larger than the DNM 4500 or 5700 series:
- Cast parts: The machine is particularly suitable for shaping and milling monolithic cast components and parts.
- Heavy-load parts and mold workpieces: With a large table size and a maximum load capacity of up to 1300 kg, all 3 versions easily accommodate the machining of very heavy molds or machine parts.
- Mass production of aluminum wheels: The DNM series features flexible integration capabilities with robot arm systems to form automated production lines for aluminum wheels.
- Bar, shaft-type parts, and fixtures with extremely long lengths: This is the strongest and most distinctive application of this machine series thanks to the extra-long X-axis travel design:

+ DNM 6700L: Ideal for long parts or fixtures, thanks to the X-axis being extended to 1.5 meters (1500 mm).
+ DNM 6700XL: Provides the ultimate solution for machining parts with "massive" lengths, rails, or complex fixture assemblies thanks to the X-axis travel reaching a maximum of 2.1 meters (2100 mm).
