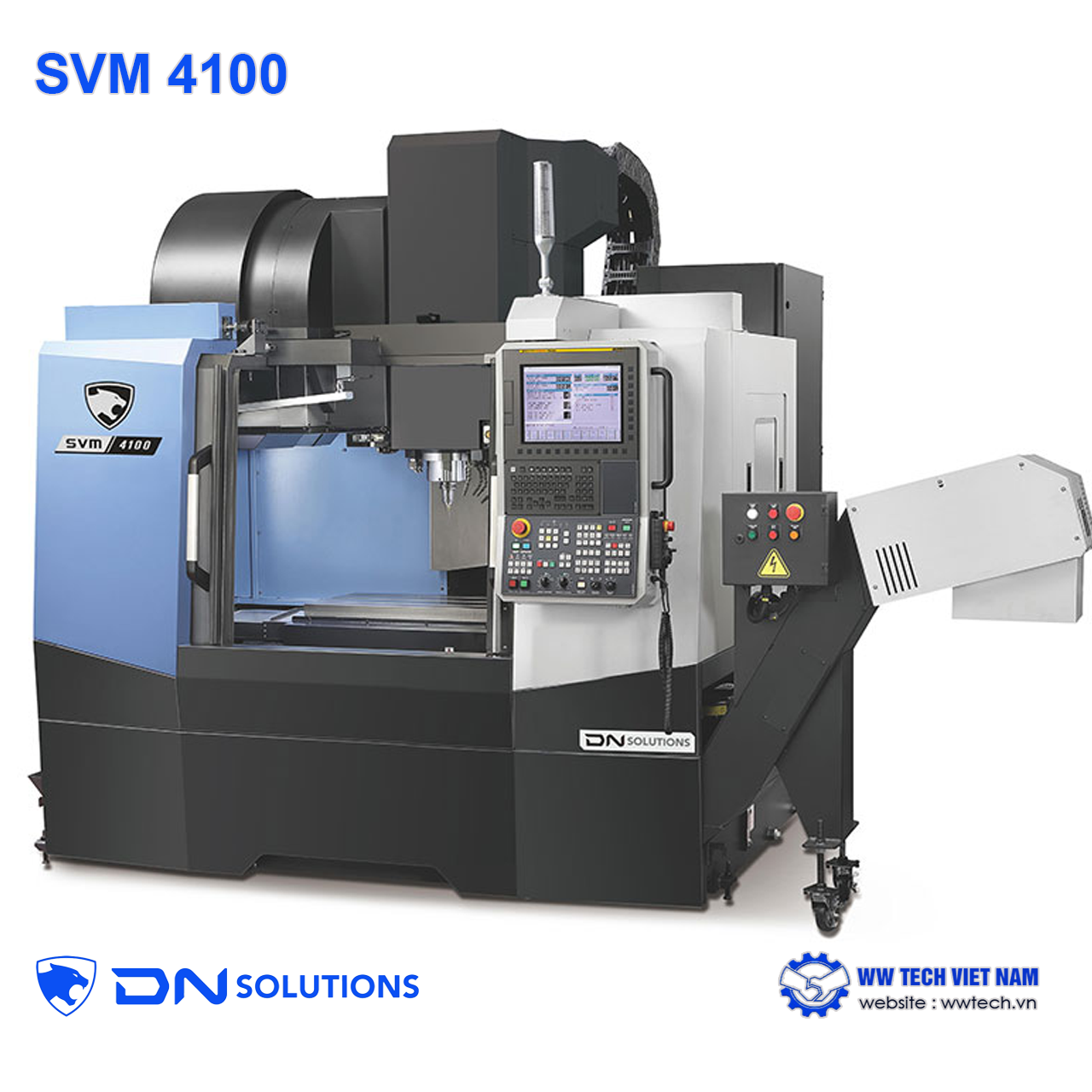

The DN Solutions SVM series is a Vertical Machining Center featuring two models, SVM 4100 and SVM 5100L, designed around the "Swift" concept. It utilizes a traditional C-frame structure that has been optimized to deliver maximum productivity. The core objective of this series is to enhance production efficiency by increasing the acceleration/deceleration rates of the axes and spindle, thereby minimizing non-cutting time. The SVM 4100 is a CNC vertical milling machine speed-optimized for light-duty cutting operations, making it ideal for machining aluminum, electronic components, and automotive parts.

details

Key Technical Features

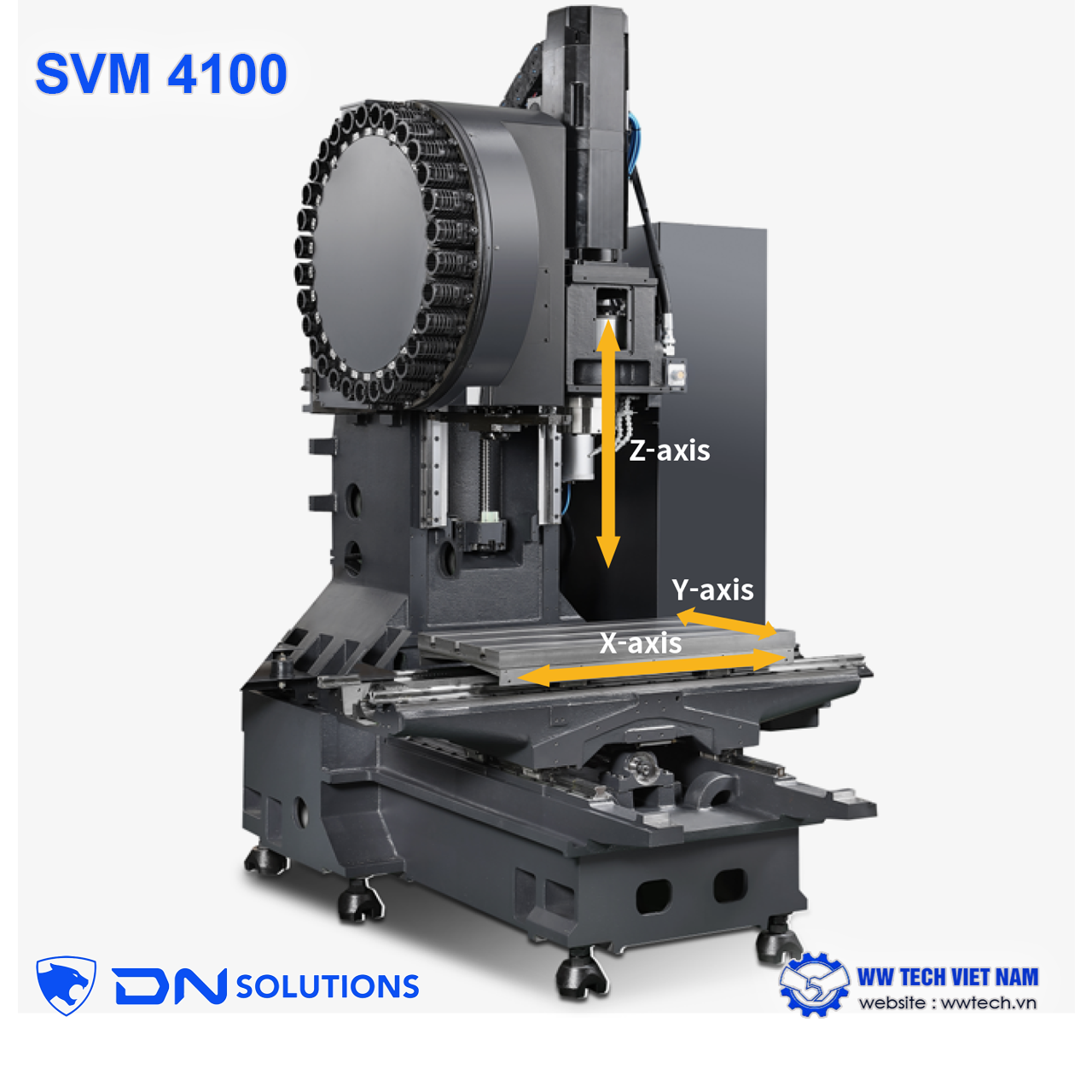

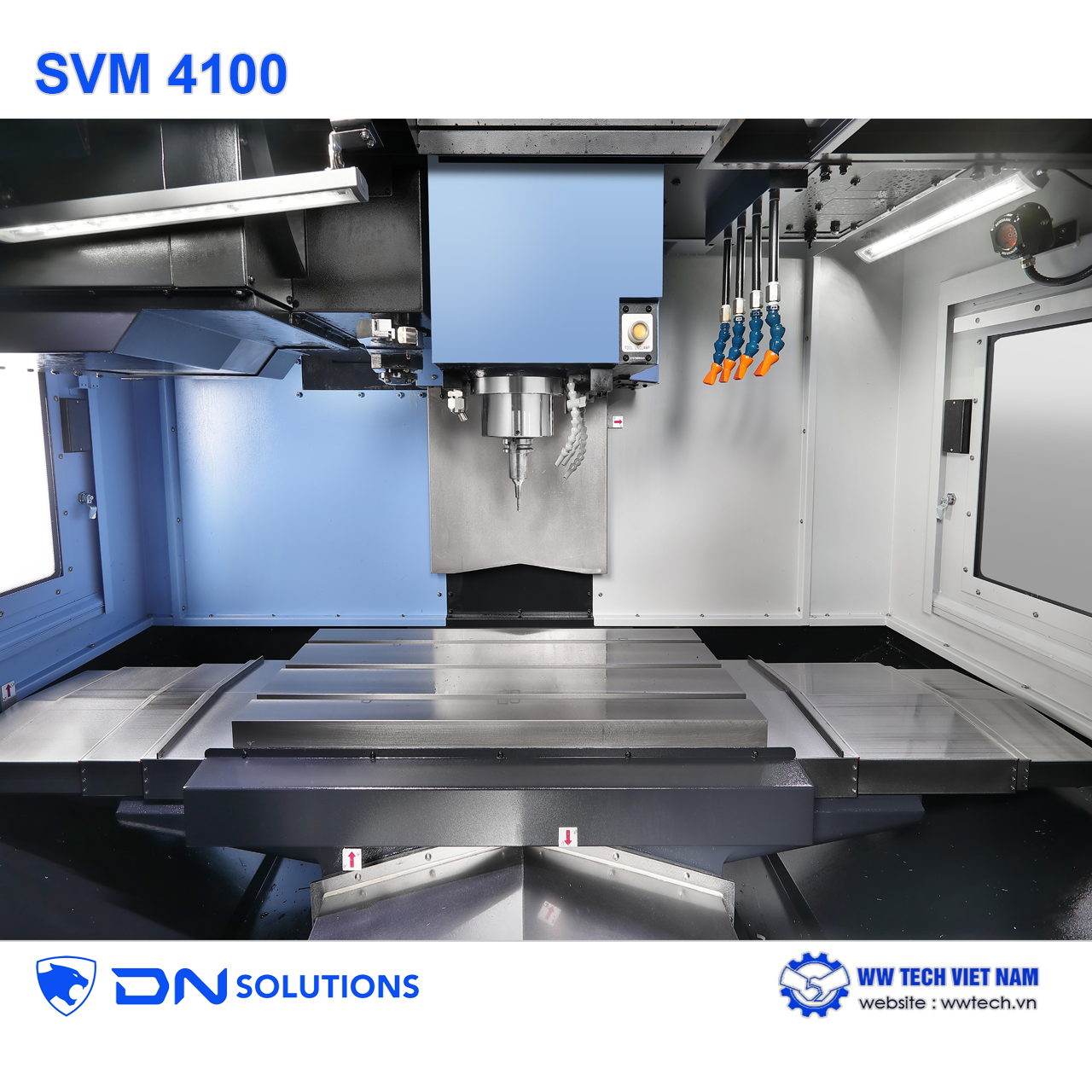

- Working Envelope (Travel): X / Y / Z axes travel measures 770 / 410 / 510 mm, respectively.
- Worktable: Widest in its class with dimensions of 920 x 410 mm and a maximum table load capacity of up to 600 kg.
- Spindle System: Integrated with direct-coupled drive technology to reduce noise and vibration. The maximum spindle speed reaches 12,000 r/min (10,000 r/min for the SVM 4100i version), with power up to 18.5 kW and peak torque reaching 95.5 N m. The machine is also equipped with standard spindle thermal growth compensation to maintain high precision.
- Feed Axis System: Rapid traverse speed reaches 36 m/min across all three X/Y/Z axes. Impressive acceleration/deceleration rates reach 0.7 / 0.6 / 0.6 g for the X / Y / Z axes, respectively.
- Automatic Tool Changer (ATC): Standard tool magazine capacity is 30 tools. Exceptionally fast tool change times with Tool-to-Tool at 1.3 seconds (or 1.4 seconds on the 4100i model) and Chip-to-Chip ranging from 3.3 to 3.4 seconds.
- Environmentally Friendly: Uses a grease lubrication system instead of conventional oil, protecting the environment, eliminating the need for an oil skimmer, and reducing lubrication costs by up to 60%.

Specification	SVM 4100	SVM 5100L
TRAVELS
X-Axis Travel Distance	770 mm	1270 mm
Y-Axis Travel Distance	410 mm	510 mm
Z-Axis Travel Distance	510 mm	510 mm
FEED RATES
X-Axis Rapid Traverse	36 m/min	36 m/min
Y-Axis Rapid Traverse	36 m/min	36 m/min
Z-Axis Rapid Traverse	36 m/min	36 m/min
MAIN SPINDLE
Max. Spindle Speed	12000 r/min	12000 r/min
Max. Spindle Power	18.5/5.5 kW	18.5/5.5 kW
Max. Spindle Torque	95.5 N·m	95.5 N·m
Tool Taper	ISO #40	ISO #40
TABLE
Table Length	920 mm	1320 mm
Table Width	410 mm	510 mm
Maximum Workpiece weight	600 kg	800 kg
DIMENSIONS
Length	2171 mm	2210 mm
Height	2661 mm	2681 mm
Width	2250 mm	3100 mm
Weight	3850 kg	6500 kg

The SVM 4100 holds a major advantage in acceleration, offering agile machining while saving floor space. Meanwhile, the SVM 5100L focuses on expanding the working area and providing high load capacity for larger, bulkier workpieces

Control System

The machine supports two advanced control system options to optimize operator convenience:

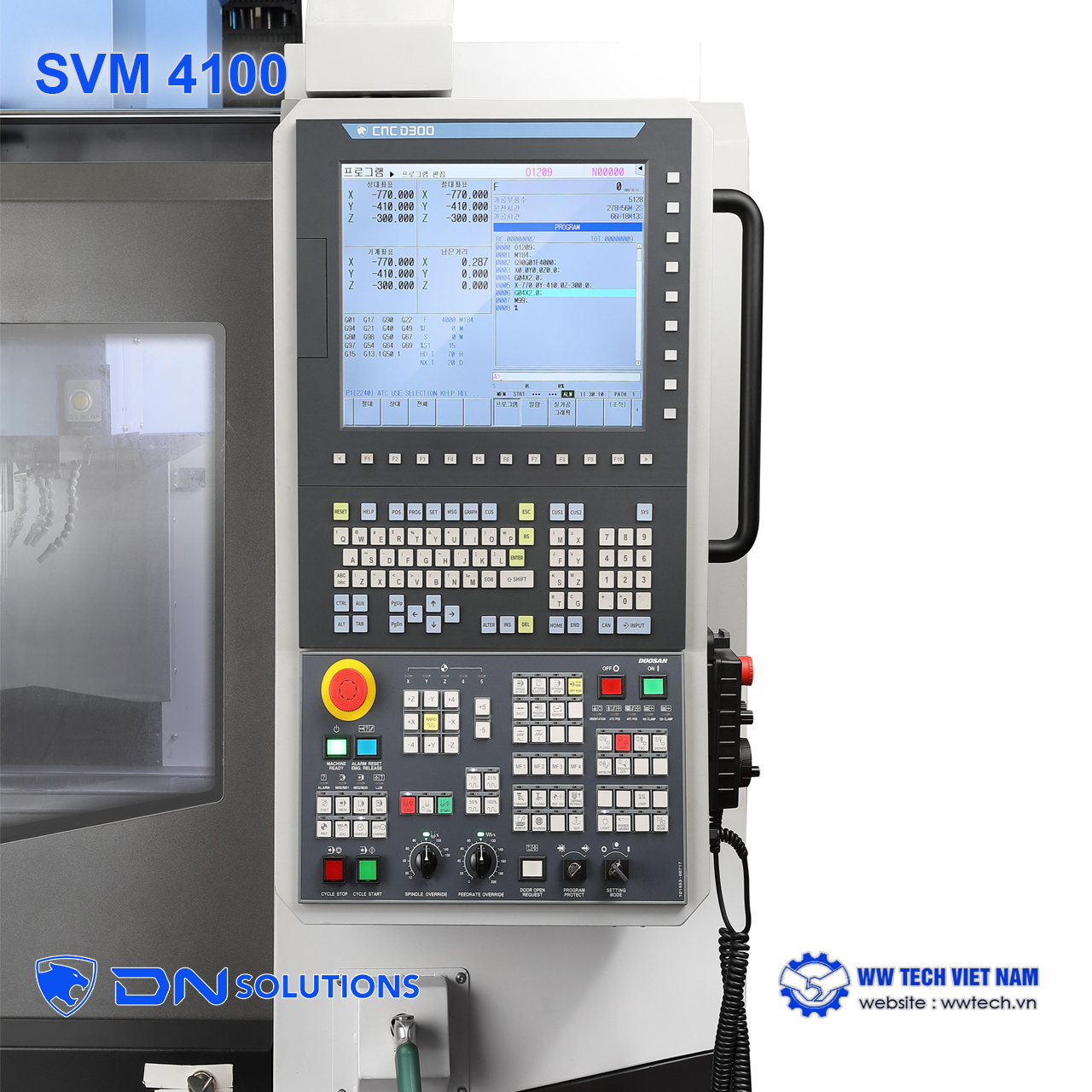

DN Solutions FANUC i PLUS: Features a 15-inch color touchscreen (iHMI) with an intuitive interface and a QWERTY keyboard. A highlight is the exclusive EZ Work software suite, which reduces machine setup time, offers Tool Load Monitoring, Adaptive Feed Control (AFC) to prevent tool breakage, and easy tool management.

SIEMENS 828D: Comes with a large 15.6-inch display (expandable to 21.5 inches) and 10MB memory capacity. Supports high-end 3D simulation, ShopMill programming language, and advanced navigation features.

Production Applications and Workpiece Materials

Workpiece Materials: The SVM 4100 is specifically optimized for high-speed cutting of lightweight materials such as aluminum and aluminum die castings. Additionally, it is fully suitable for light-duty cutting tasks on steel parts.
Manufacturing Applications: This series was developed to meet the growing production demands in the Automotive and IT/Electronics industries.

Real-World Applications

Thanks to its superior operational performance, the machine significantly improves cycle times for actual mechanical components. A typical example cited is the machining of a Mobile Phone Bracket for a partner (Company K). In a production cycle for this part involving 7 tool changes, the SVM 4100i reduced machining time by 23%, from 1 minute 47 seconds down to just 1 minute 22 seconds. The machine is also ideal for parts requiring large volumes of hole tapping (M3 tapping) or internal pocket milling.
