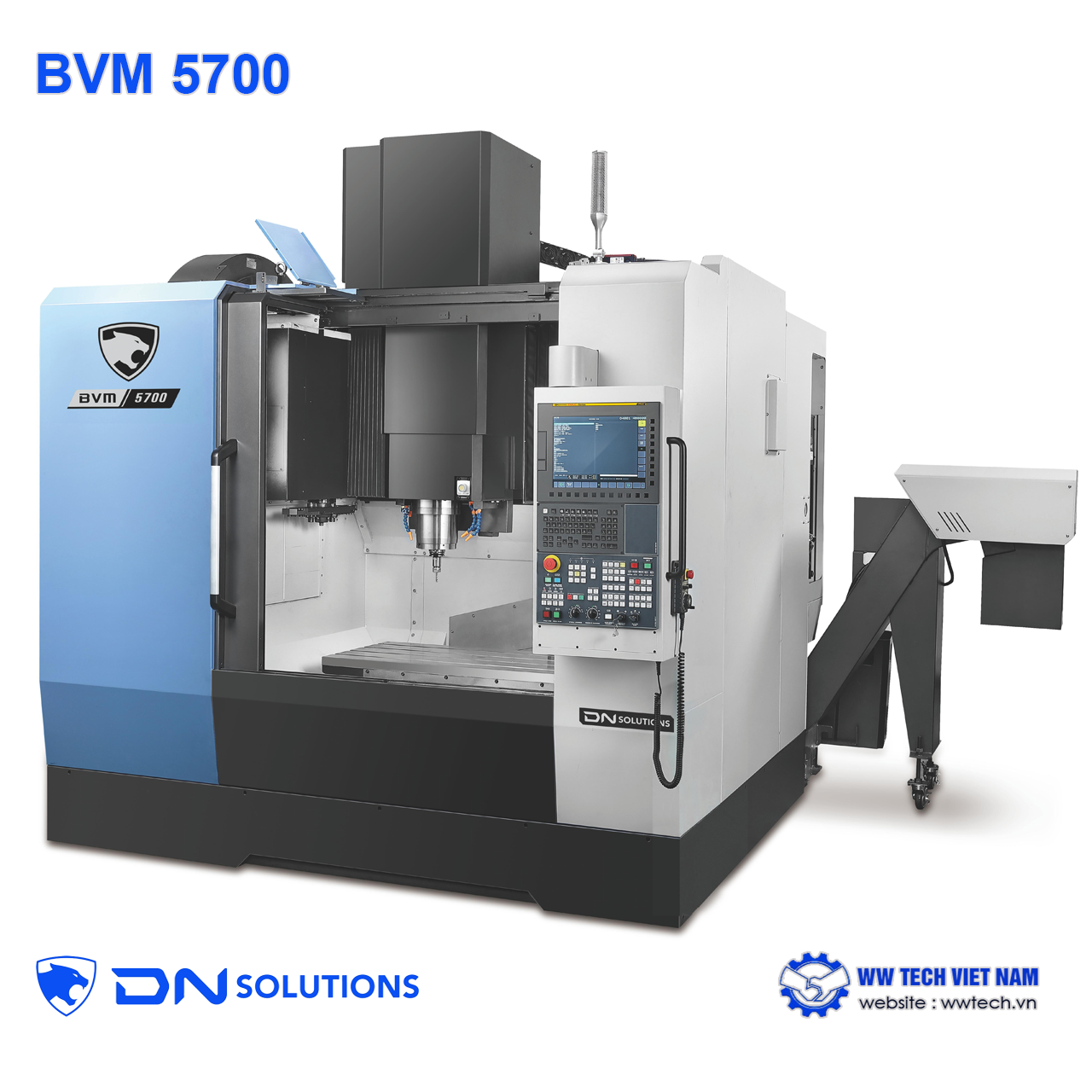

BVM 5700 high-speed vertical milling machine

BVM 5700 high-speed vertical milling machine thumb

BVM 5700 high-speed vertical milling machine
Post on 03-08-2026 12:53:13 AM - 31 Views
Product code: BVM 5700
The BVM 5700 series is a premium Vertical Machining Center focused on high speed and high precision. This machine series is optimally designed with a bridge frame structure, delivering exceptional stability and enhanced cutting performance. It is the ideal choice for manufacturing enterprises demanding the highest level of precision and outstanding productivity from a 3-axis CNC milling machine. The machine is specifically designed for processing molds and precision mechanical parts that require high stability

details

Key Technical Features:
- Rigid Double-Column Bridge Frame Structure: Helps optimize rigidity and stability, ensuring high precision even when performing heavy-duty machining operations.
- Powerful High-Speed Spindle: Utilizes a standard built-in spindle with speeds up to 15,000 r/min, power output reaching 18.5 / 37 kW, and a large torque of 214 N m to boost cutting performance.
- Working Envelope and Worktable: Travel dimensions for X / Y / Z axes are 1050 / 570 / 460 mm, respectively. The worktable size is 1300 x 570 mm, allowing a maximum load capacity of up to 1000 kg, which is recognized as the largest in its class.
- High Rapid Traverse Speed: Thanks to drive system optimization, rapid traverse speed reaches up to 42 m/min (for X, Y axes) and 36 m/min (Z axis). Axis acceleration reaches 0.5 / 0.5 / 0.4 G, helping reduce non-cutting time.
- Ultra-Short Tool Change Time: Standard 30-tool magazine capacity (optional 40 tools) with an extremely fast tool-to-tool change time of just 1.3 seconds and a chip-to-chip time of 5.5 seconds.
- Temperature Control & Surface Finish Technology: Equipped with standard spindle thermal growth compensation and a ball screw nut cooling system to minimize thermal deformation. The machine features SSP (Smooth Surface Package) technology to produce high-quality surface finishes.
- Fast Chip Disposal System: Utilizes 2 internal chip screw coils to rapidly clear chips from the machining area.
- The BVM 5700 is equipped with advanced control systems to maximize productivity and offer user convenience, including 3 standard and optional control system choices:

1, FANUC i Plus Control System (F0i PLUS) Interface and Design: Features a 15-inch color screen combined with an ergonomically designed operation panel, including a QWERTY keyboard, USB port, and PCMCIA memory card interface. Notably, the optional iHMI touchscreen provides an intuitive interface, enabling quick and easy operation during programming and machining. EZ Work Software: Integrated with DN Solutions' exclusive EZ Work software suite, providing features that reduce setup time and protect the machine, such as: Tool Management, ATC Recovery troubleshooting guide, Tool Load Monitoring to alert for tool wear, Adaptive Feed Control (AFC) to prevent tool breakage, and thermal growth compensation to ensure precision. Data and Storage: Equipped with a standard 2MB memory (expandable) and supports the EZ-guide i conversational programming tool.

2. HEIDENHAIN TNC620 Control System Hardware Configuration: Features motion-control optimized hardware with a 15.6-inch screen, large 21GB memory storage, and high-speed block look-ahead capability. Utility Functions: User-friendly data management via directory structure, support for touch probe cycles, and automatic machine kinematics optimization (KinematicsOpt & KinematicComp). Additionally, it integrates graphical simulation and sample cycles for diverse applications.

3. HEIDENHAIN TNC7 Control System Ultra-Large Intuitive Screen: A major step forward featuring a 24-inch touchscreen that enables tasks from programming and program validation to direct machine setup right on the screen via a customizable interface. Superior Hardware Specifications: Boasts an ultra-large program memory of up to 189GB and a look-ahead capacity of up to 5000 blocks. Advanced Safety Technology: Equipped with graphical programming using Touch Probe Cycles, automatic kinematics measurement (KinematicsOpt), and notably, Dynamic Collision Monitoring (DCMv2) to ensure maximum operational safety.

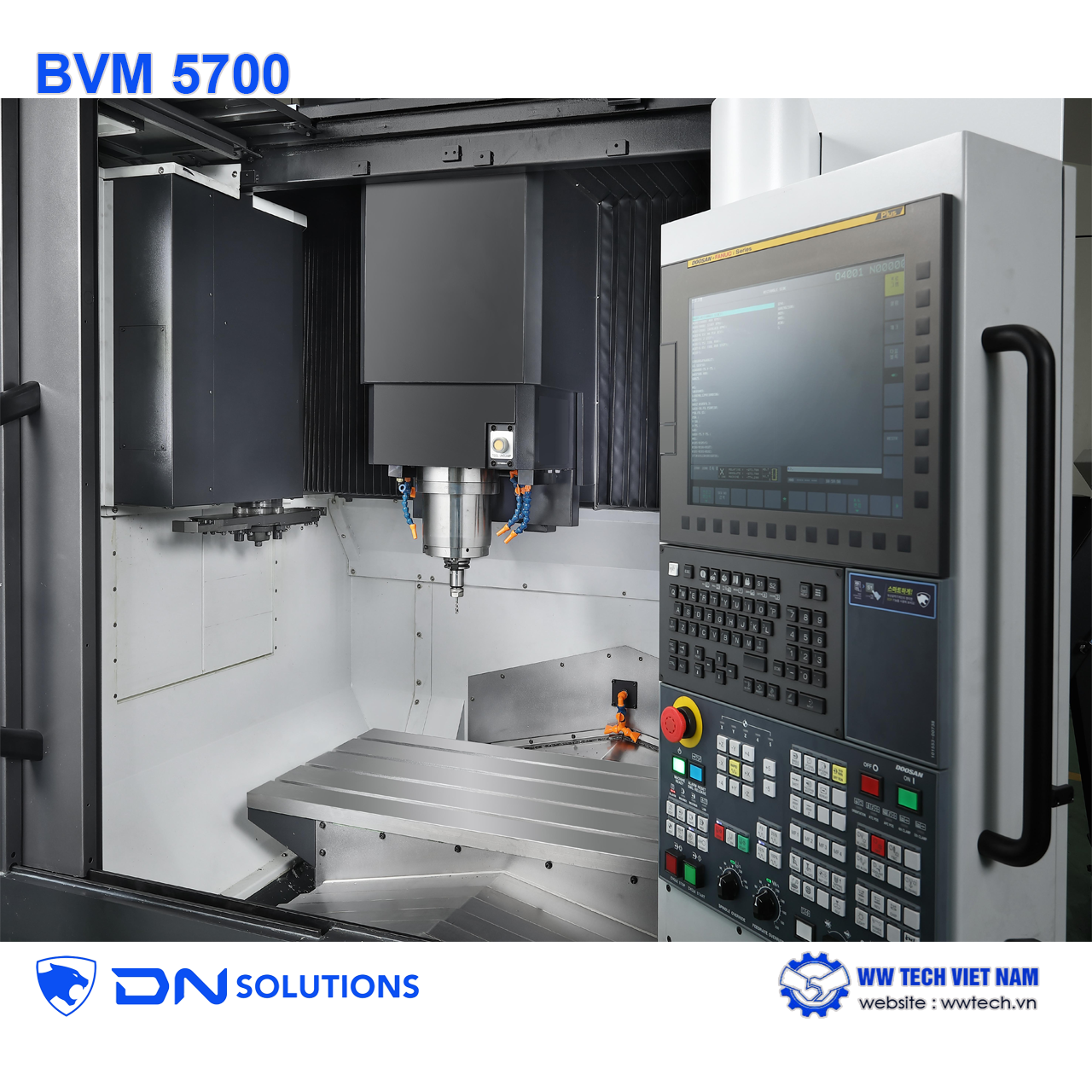

BVM5700 CNC vertical milling machine 012

Manufacturing Applications:
- The machine system and peripheral options (such as specialized chip conveyor types) are designed to perfectly machine metals such as steel and cast iron. In addition, the powerful torque (214 N m) combined with high spindle quality enables effective cutting on various other high-hardness metal materials.
- Thanks to its high rigidity and high speed characteristics, the BVM 5700 is ideal for facilities specializing in precision and heavy-duty machining. It is also an excellent choice for mold and die manufacturing, machining large metal workpieces weighing up to 1 ton, precision metal casting molds, or mechanical parts requiring strict surface finish quality enhanced by SSP technology.

SPECIFICATIONS	BVM 5700
TRAVELS
X-Axis Travel Distance	1050 mm
Y-Axis Travel Distance	570 mm
Z-Axis Travel Distance	460 mm
FEED RATES
X-Axis Rapid Traverse	42 m/min
Y-Axis Rapid Traverse	42 m/min
Z-Axis Rapid Traverse	36 m/min
MAIN SPINDLE
Max. Spindle Speed	37 r/min
Max. Spindle Power	37 kW
Max. Spindle Torque	214 N·m
Tool Taper	ISO #40
TABLE
Table Length	1300 mm
Table Width	570 mm
Maximum Workpiece weight	1000 kg
DIMENSIONS
Length	3080 mm
Height	2890 mm
Width	2560 mm
Weight	7500 kg
