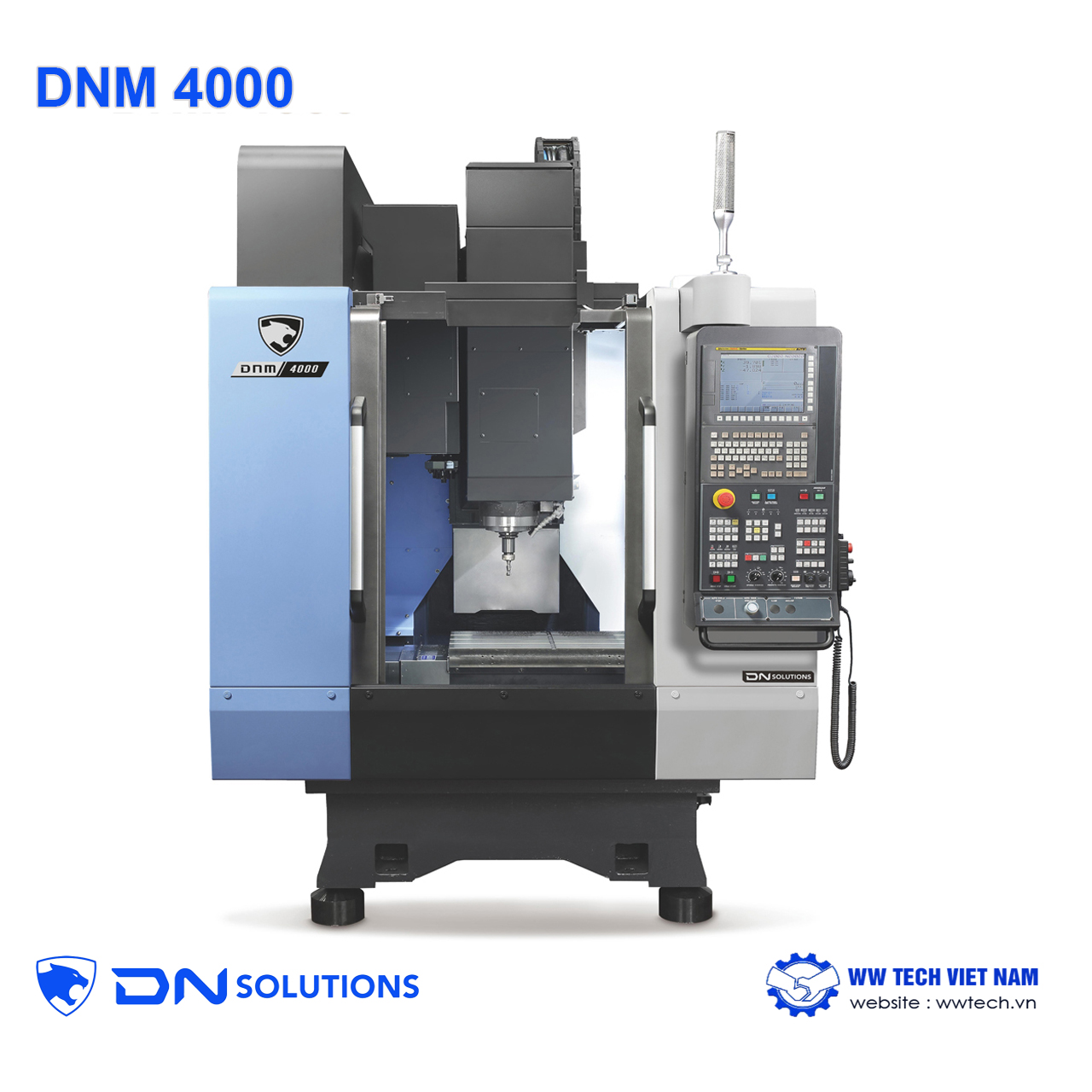

DNM 4000
High Productivity Vertical Machining Centers
With a global installed base in excess of 30000 machines, the DNM series is a popular and proven mainstay in DN SOLUTIONS’s product line. With a range of different models, sizes and capacities - there is definitely a DNM machine that meets your needs.
Reliability
Excellent Machining Capability
High Precision
Stability

details

Highlights

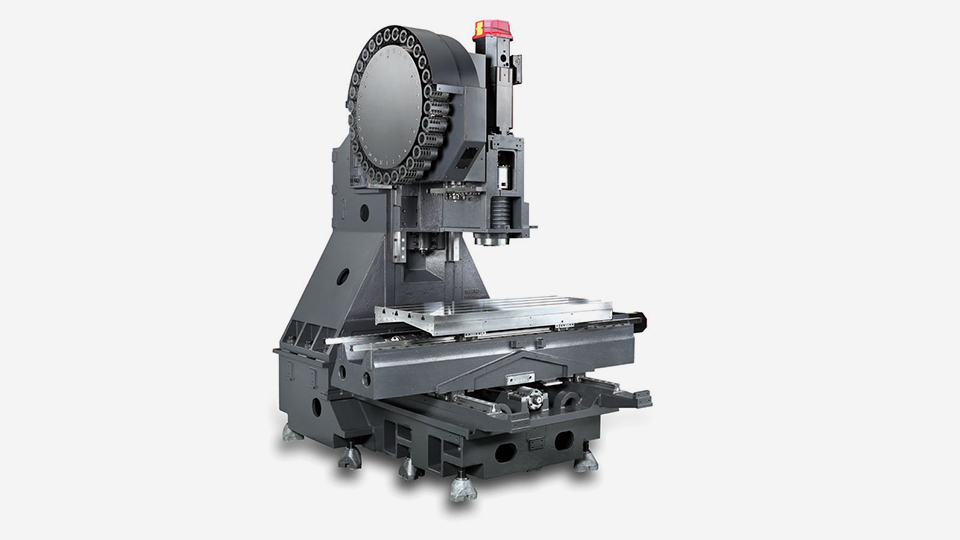

The largest machining area in its class.
New DNM series machines are equipped with a larger table with increased Y-axis travel and higher table load.

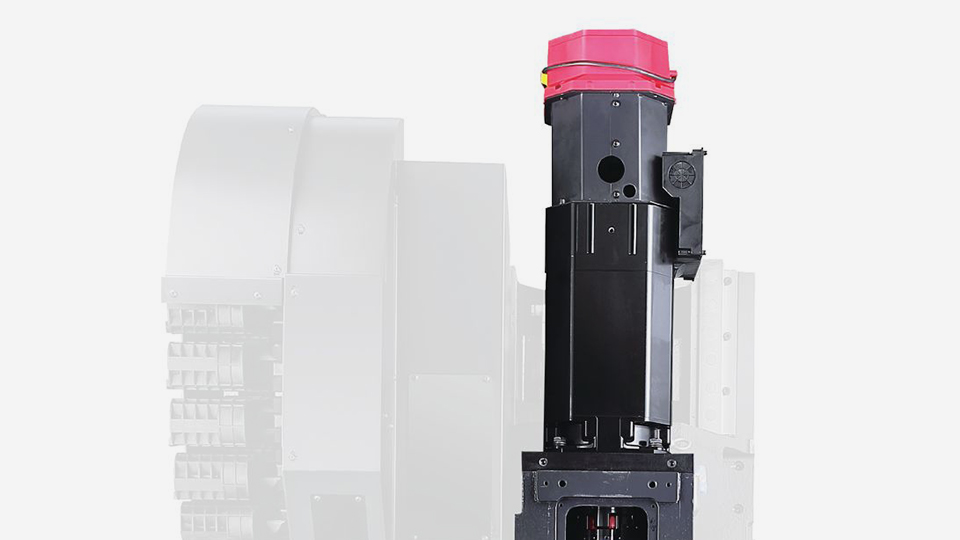

Direct-coupled spindle for higher productivity
Improves the machines’ performance and their environmental-friendliness, compared to belt driven types.
Higher productivity is achieved by reducing the tool change time and improving all axes feed rates plus acceleration/deceleration times.

An environmentally-friendly machine designed for stable and easy operation
The EOP function can be accessed via the pop-up window on the NC main screen
Grease lubrication for axis roller guideways supplied as standard

Product Specifications

TRAVELS
Travel Distance X-axis	520 mm (20.5 in)
Travel Distance Y-axis	400 mm (15.7 in)
Travel Distance Z-axis	480 mm (18.9 in)
Rapid Traverse X-axis	48 m/min (1889 in/min)
Rapid Traverse Y-axis	48 m/min (1889 in/min)
Rapid Traverse Z-axis	48 m/min (1889 in/min)
TABLE
Spindle to Table Distance	150 - 630 mm (5.9 - 24.8 in)
Table Size	650 x 400 mm (25.6 x 15.7 in)
Max Load	400 kg (882 lbs)
SPINDLE
Speed	12000 rpm
Power	18.5 kW (25 Hp)
Torque	118 Nm (87 ft-lbs)

TOOLING
Shank	BIG PLUS CAT40
Changer Capacity	20
Max Diameter	90/125 mm (3.5/4.9 in)
Max Length	270 mm (10.6 in)
MACHINE SIZE & WEIGHT
Weight	3300 kg (7275 lbs.)
Length	2858 mm (112.5 in)
Height	2753 mm (108.4 in)
Width	1650 mm (65 in)

🧰 WW Tech Vietnam is an authorized distributor.
We are committed to providing customers with: 100% genuine products, clear origin.
🔷 Fast delivery time, meeting production schedules.
🔷 Optimal and competitive costs in the market.
🔷In-depth technical services, long-term support with a team of senior engineers, highly ecialized engineers trained abroad, knowledgeable in DN Solutions machine lines and common CNC control systems.
🔷 Clear warranty policy, 24/7 technical support, quick response to all customer requests.
📢Precision mechanical processing enterprises, industrial equipment manufacturing plants, molds, electronic components. Industrial parks, export processing zones, CNC processing centers....interested in products : DNM 4000
To learn more details about this product.
Please contact us immediately for support.

Keyword: DNM 4000, Vertical Machining Centers
