The PUMA V400 vertical turning center series by DN Solutions is the ultimate solution for heavy-duty machining operations requiring long-term precision within a limited workshop space.
The current PUMA V400 lineup includes three versions: PUMA V400, PUMA V400M, and PUMA V400P. These are compact yet high-performance vertical CNC turning machines with robust constructions engineered for heavy-duty tasks. They are exceptionally well-suited for machining disc-, plate-, and housing-shaped parts, or heavy-load axisymmetric components with profiles ranging from simple to complex.

details

1. Outstanding Technical Features
Robust Design and Solid Construction: Engineered with a highly compact footprint (approx. 58" x 82" or 1475 mm x 2075 mm). The machine frame is built using heavily-ribbed Meehanite cast iron integrated with solid box guideways. This robust design effectively absorbs vibrations, delivering outstanding rigidity, long-term accuracy, and exceptional surface finishes during heavy-duty cutting operations.
Powerful Spindle:
- Maximum spindle speed: 3000 r/min.
- Maximum spindle power (S6 25%): 26 kW (34.9 Hp) (utilizing a 22 kW standard motor).
- Maximum spindle torque: Up to 863 N·m (636.9 ft-lbs) (reaching up to 1050 N·m (774.9 ft-lbs) under Fanuc system configurations).

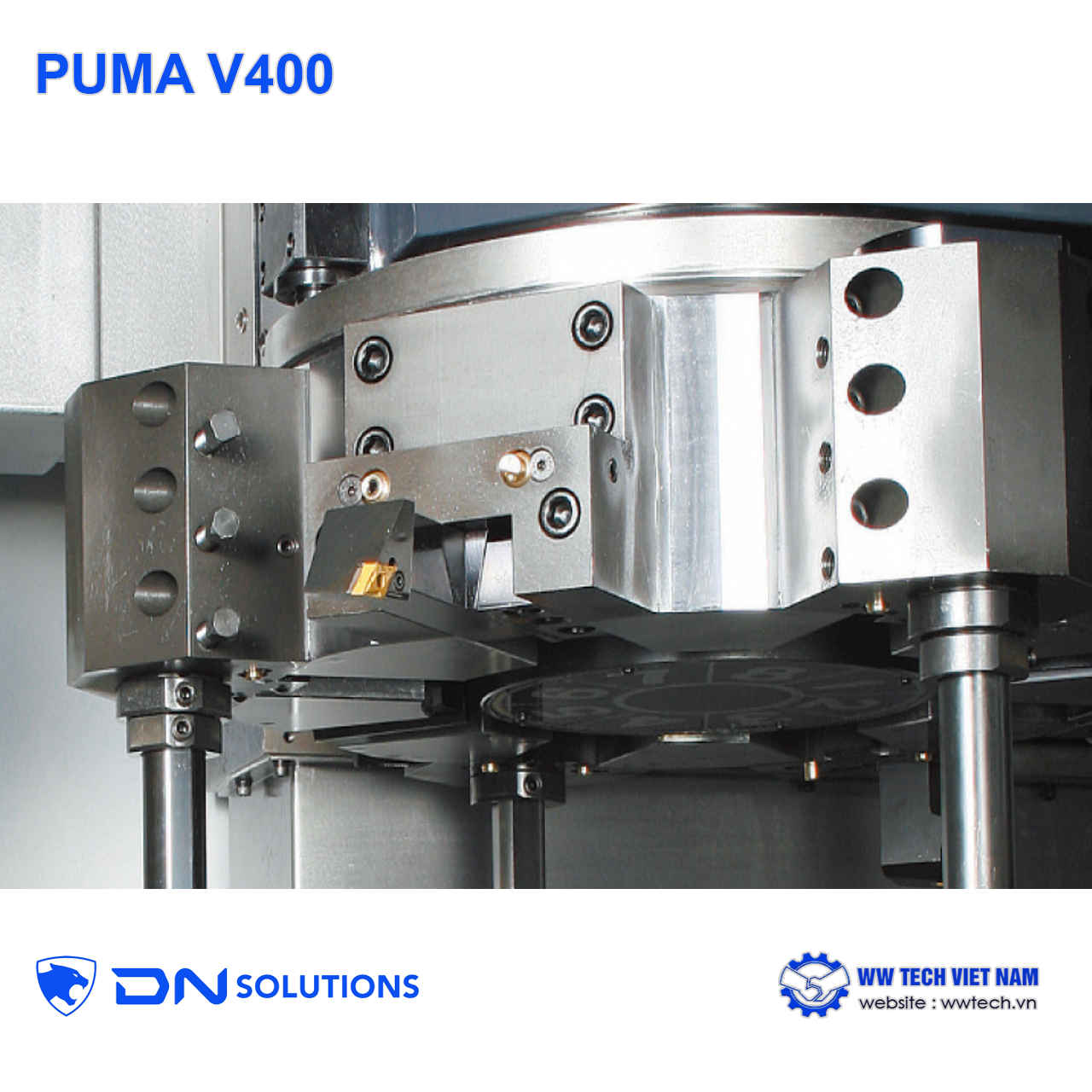

- Spindle design: Features a cartridge-type assembly with an ASA A2-8 nose and a large front bearing diameter (130 mm) that easily supports heavy workpieces and minimizes thermal growth during extended runs.
High-Speed Servo Turret:
- Equipped with a large, rigid 12-station heavy-duty turret featuring a large-diameter Curvic coupling.
- Driven by a high-torque servo motor, turret rotation and kẹp/nhả (clamping/unclamping) occur virtually simultaneously.
- Boasts an extremely fast indexing response of just 0.15 seconds (for a 1-station swivel), significantly reducing total part cycle times.
- Capacity: Standard 12 stations (with an 8-station option available specifically for the standard V400 model).
Travels and Feedrates:
- X / Z axis travel distance: 268 mm / 488 mm (10.6" / 19.2").
- Rapid traverse rates (X / Z): 20 / 24 m/min (787.4 / 944.9 ipm) for the V400 and V400M models.

Specialized Models:
- PUMA V400: The standard 2-axis (X, Z) vertical turning center.
- PUMA V400M (Mill): Integrates a 360° C-axis (with 0.001° indexing) and a BMT65P rotary tool turret operating up to 4000 r/min. It utilizes a Preci-flex adapter dual-contact interface to deliver high rigidity and accuracy during complex milling, drilling, and tapping operations. Due to the milling drive assembly, its maximum turning diameter and length are slightly reduced to 420 mm and 400 mm respectively (compared to 496 mm and 461 mm on the standard model).
- PUMA V400P (Productivity): A productivity powerhouse utilizing roller-type LM guideways and upgraded servo motors. This model increases the X-axis rapid traverse to 24 m/min and features faster acceleration/deceleration.
2. Advanced Control Systems
The PUMA V400 series offers two high-performance CNC selections:
DN Solutions Fanuc i Plus:
- Features an intuitive 15-inch color iHMI touchscreen paired with a full QWERTY keyboard.
- Comes standard with the EZ-Guide i conversational programming solution for easy setup.
- Standard program storage size is 2MB (1000 programs), expandable up to a 2GB option.
- Supports real-time cutting and tool path simulations and features AI Contour Control (AI Contour Control I with 40-block look-ahead standard, or AI Contour Control II with 200-block look-ahead optional).
Siemens S828D (SINUMERIK ONE):
- Equipped with a 15.6-inch color touchscreen and QWERTY keyboard.
- Includes Shopturn conversational programming and the EZ Operation package.
- Provides 3D finished part simulation and simultaneous recording during machining.
- Protection Zone (Collision Avoidance): NC Synchronized Actions check the interference zone between the turret and the spindle to prevent collisions due to operator error.
- Surface Roughness Improvement: Automatically controls spindle speed variations at optimal levels during precision threading to enhance surface finish.
3. Manufacturing Applications, Materials, and Real-world Products
- Manufacturing Applications: Ideal for machining large-diameter, heavy, disc-shaped, plate-shaped, or circular parts. Standardized with a 12-inch chuck (with a 15-inch option), the series excels in heavy-duty roughing as well as high-precision finishing.
- Machined Materials: Leveraging its rigid Meehanite cast iron bed and exceptional torque, the series easily cuts high-hardness and challenging materials such as alloy steels, cast irons, stainless steel, tool steels, and non-ferrous metals like aluminum and copper.
- Real-world Products:

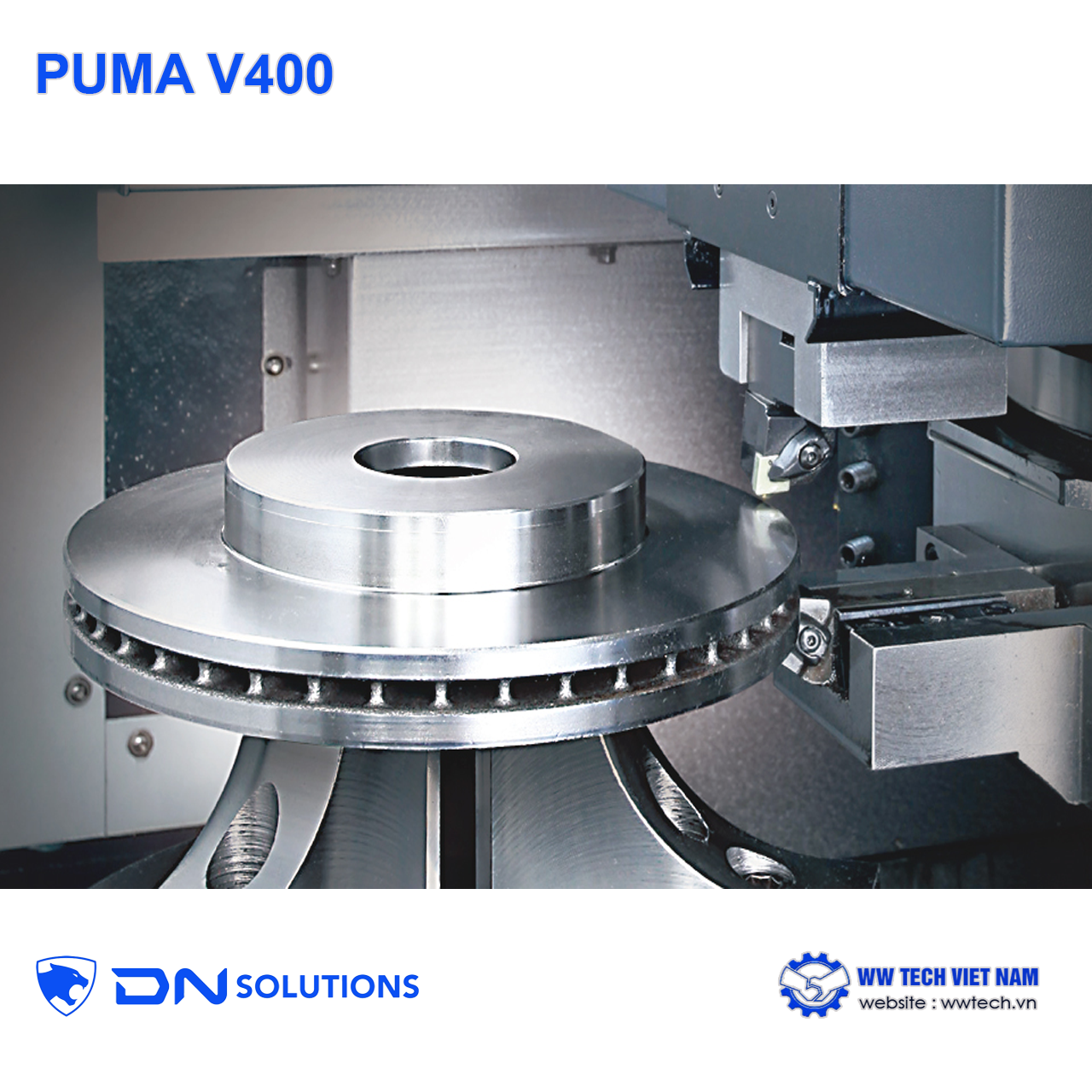

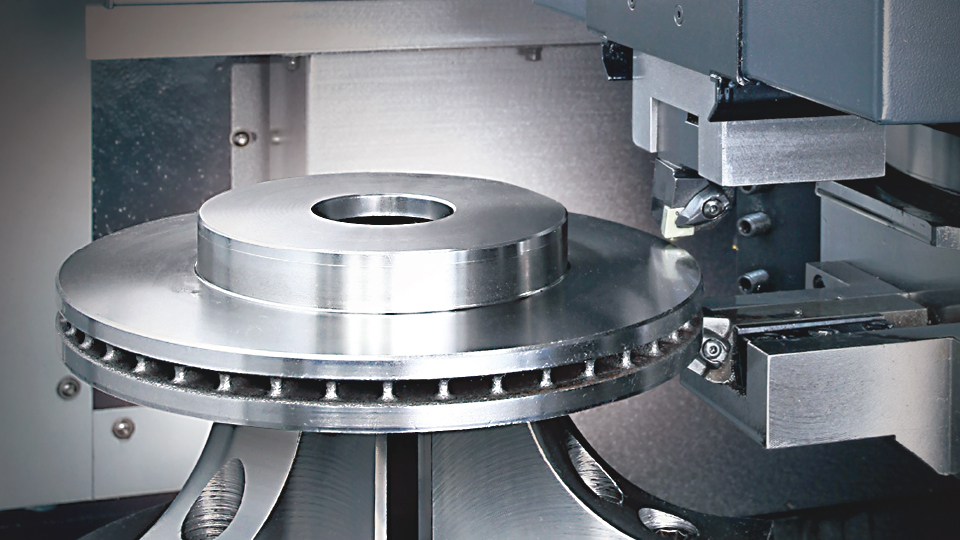

+ Brake Discs: The PUMA V400P is specifically optimized for mass-producing brake discs. It cuts down cycle times and increases overall productivity by 10% compared to previous generations.
+ Complex Turn-Mill Parts: The V400M handles parts requiring off-center drilling, radial tapping, or face milling in a single setup, eliminating secondary operations.

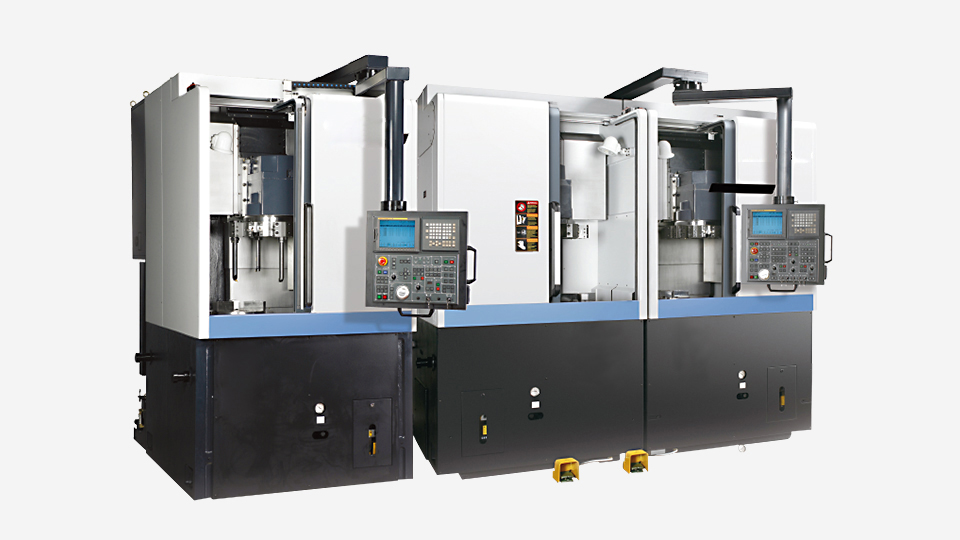

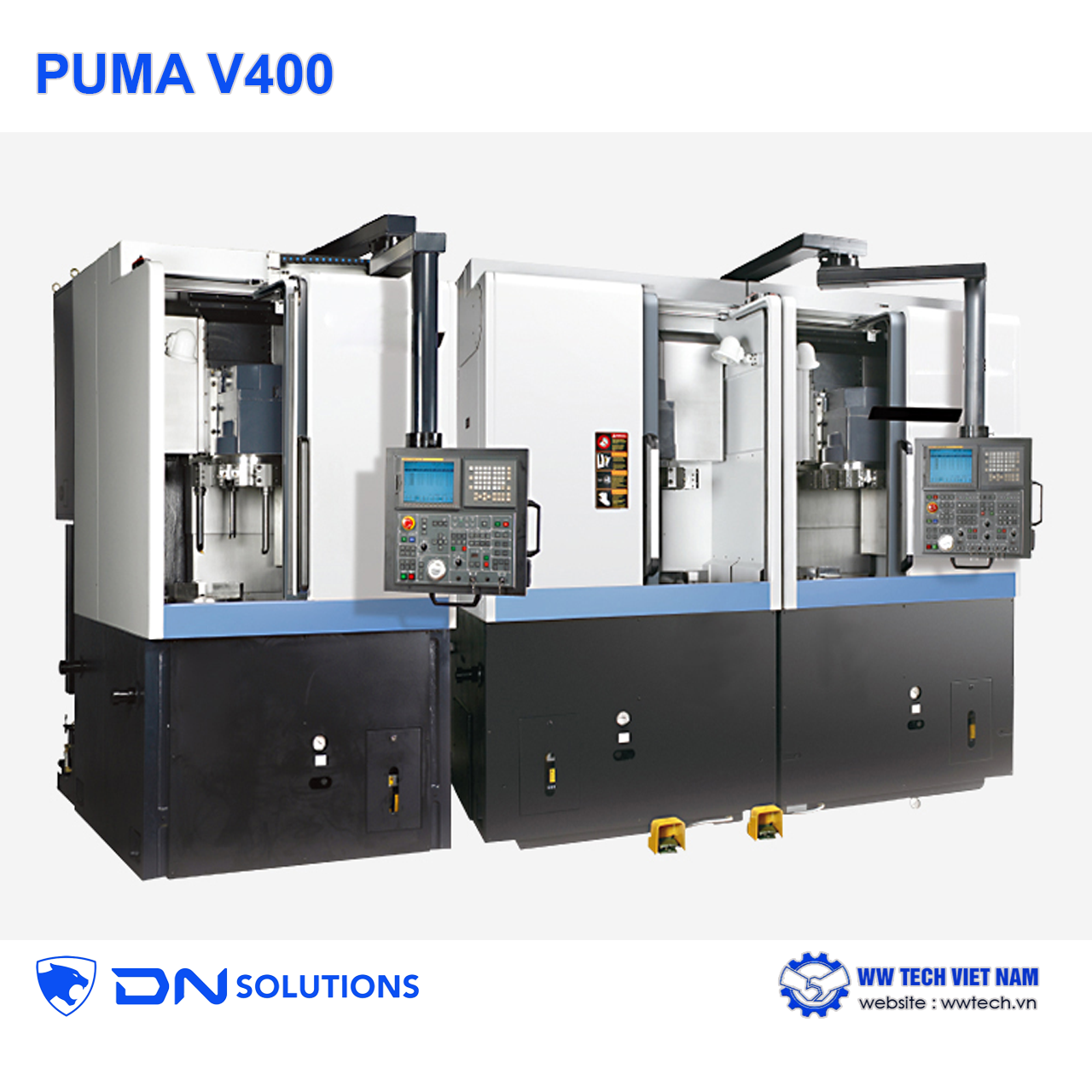

- Automation Integration: The PUMA V400 series is fully ready for factory automation. It offers standard and optional interfaces like Robot Interfaces (PMC I/O or PROFIBUS-DP), automatic doors, and automatic tool setters. It can easily be integrated with industrial robot setups (such as DN Solutions' ROBOSOL/COBOSOL) or high-speed gantry loaders to facilitate unmanned 24/7 operations.

Category	Specification	PUMA V400	PUMA V400M	PUMA V400P
CAPACITY	Chuck size	12 inch	12 inch	12 inch
	Max. Turning Diameter	496 mm	420 mm	496 mm
	Max. Turning Length	461 mm	400 mm	461 mm
TRAVELS	X-Axis Rapid Traverse	20 m/min	20 m/min	24 m/min
	Z-Axis Rapid Traverse	24 m/min	24 m/min	24 m/min
	X-Axis Travel Distance	268 mm	268 mm	268 mm
	Z-Axis Travel Distance	488 mm	488 mm	488 mm
MAIN SPINDLE	Max. Spindle Speed	3000 r/min	3000 r/min	3000 r/min
	Max. Spindle Power	26 kW	26 kW	26 kW
	Max. Spindle Torque	863 N·m	863 N·m	863 N·m
TURRET	No. of tool station	12 ea	12 ea	12 ea
TURRET	Rotary Tool r/min	-	4000 r/min	-
DIMENSIONS	Length	1475 mm	1475 mm	1475 mm
	Height	3210 mm	3210 mm	3210 mm
	Width	2075 mm	2075 mm	2075 mm
	Weight	6000 kg	6000 kg	6000 kg

Video: PUMA V400 Compact, high-performance vertical turning

Video: PUMA V400 production automated by ROBOSOL robots.
