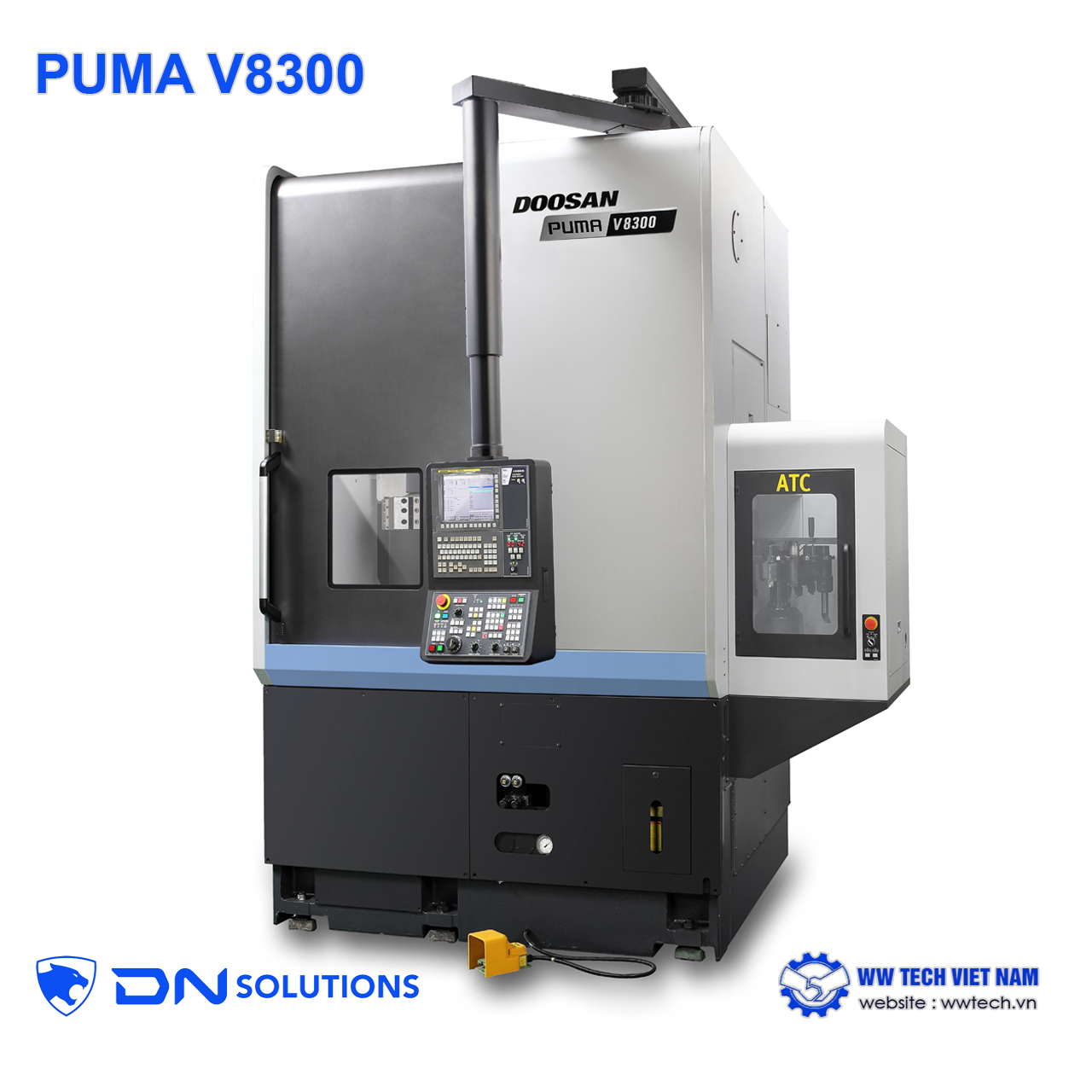

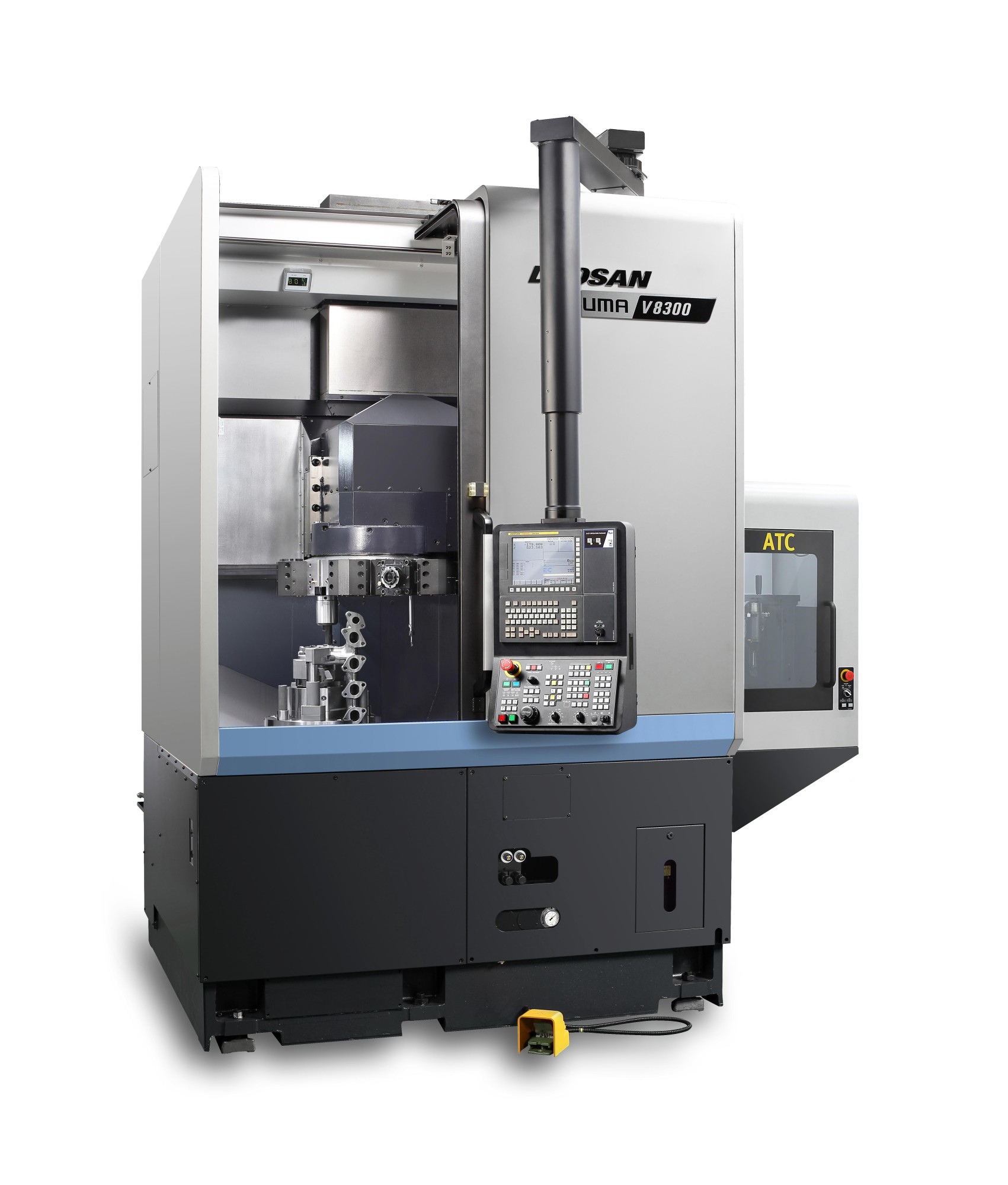

HIGH PRODUCTIVITY VERTICAL TURNING CENTER PUMA - PUMA V8300/L/R/ML/MR/2SP/M-2SP

HIGH PRODUCTIVITY VERTICAL TURNING CENTER PUMA - PUMA V8300/L/R/ML/MR/2SP/M-2SP thumb

HIGH PRODUCTIVITY VERTICAL TURNING CENTER PUMA - PUMA V8300/L/R/ML/MR/2SP/M-2SP
Post on 12-08-2025 04:50:15 AM - 509 Views
Product code: PUMA V8300
The new PUMA V8300/9300 Series comprises a range of 15"~32" chuck size vertical turning centers developed by DN Solutions using the latest technologies. The column-integrated box guideway and reinforced bed frame machines have a stronger and more rigid structure that is suitable for heavy-duty turning. The Series represents the largest turning capacity of its class further enhancing productivity and profitability

details

ENHANCED MACHINING
CAPACITY

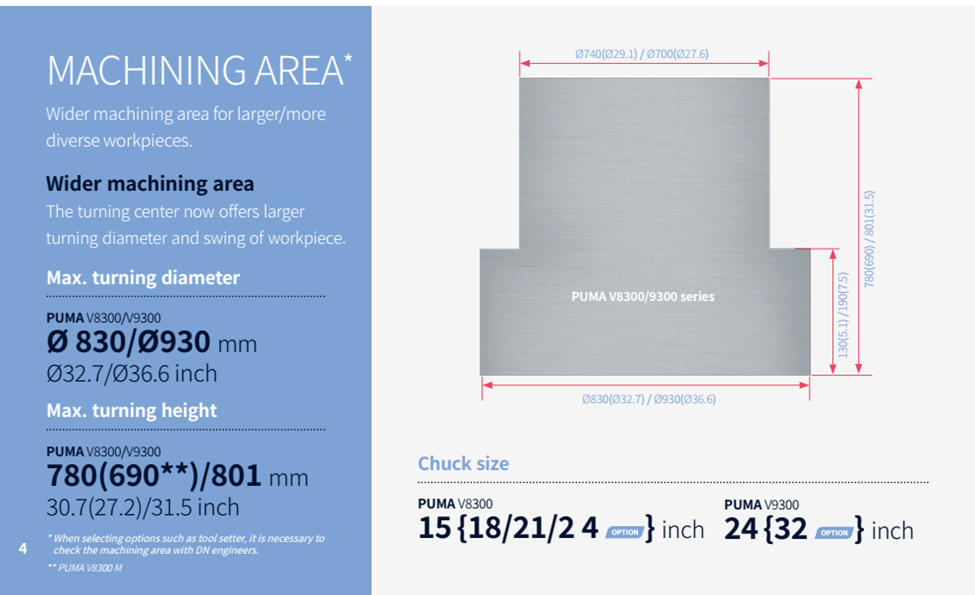

The largest turning capacity in its class is achieved with max. 32" m chuck size and 930 mm (36.6 inch) of max. turning diameter
HIGHEST POWER AND MACHINING
PERFORMANCE IN ITS CLASS
• High power spindle for powerful cutting performance
- Max. power 45kW, torque 4444N·m (PUMA V9300)
- Max. power 45kW, torque 3153N·m (PV8300)

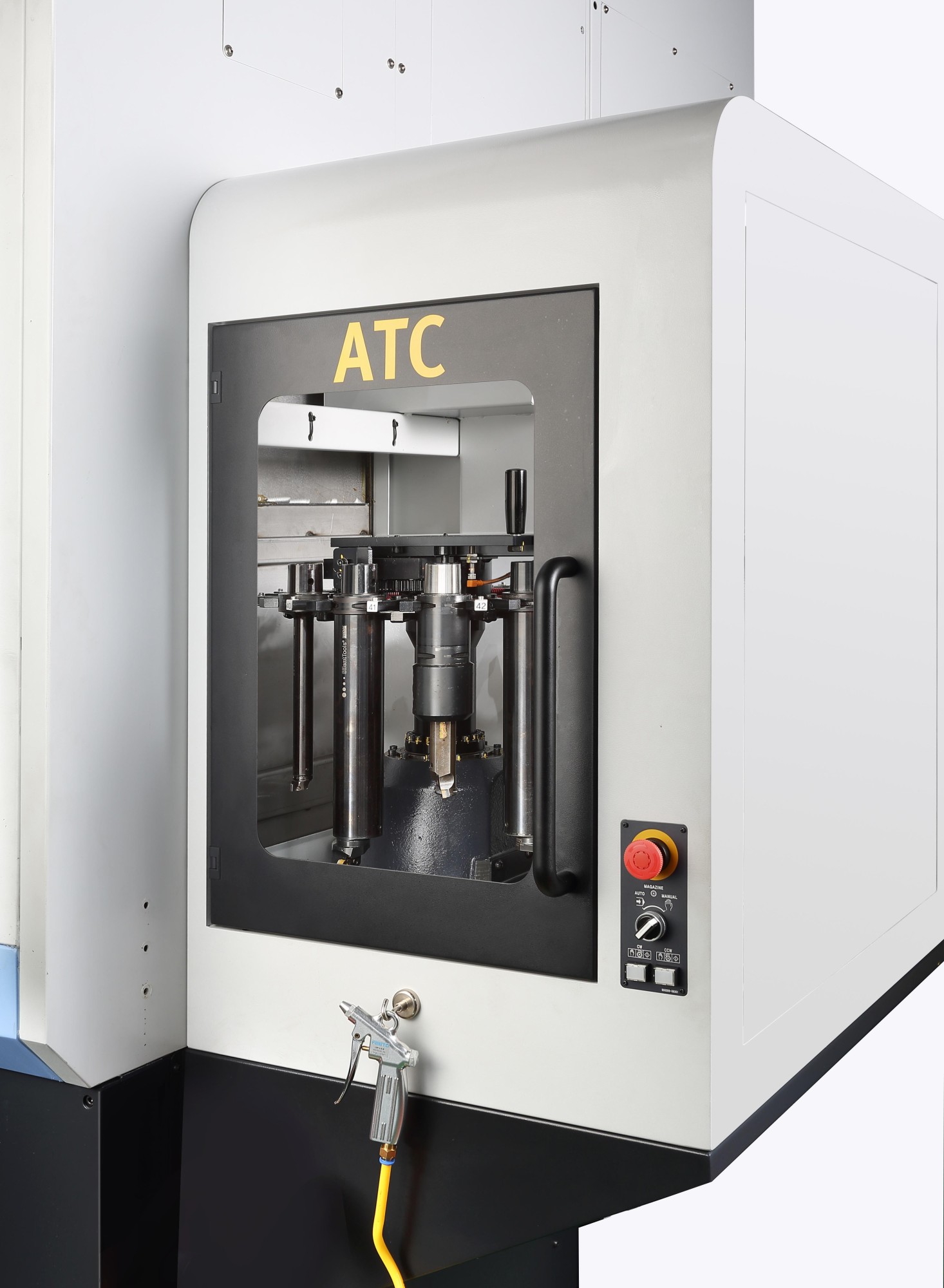

• Increase the number of tools with ATC option can
improve the flexibility and efficiencyofmachining
performance

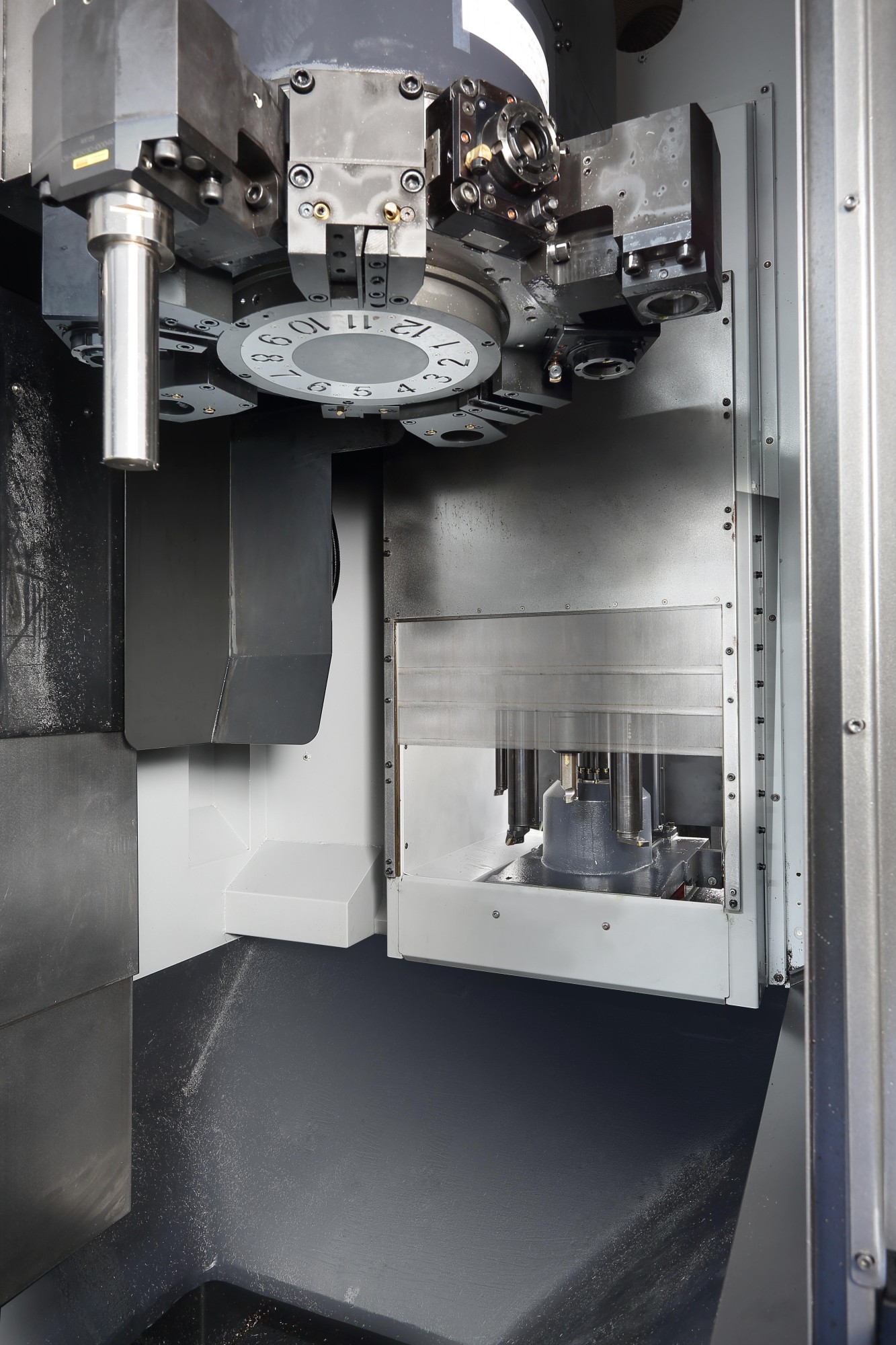

• Fast and stable servo driven turret
• Robust BMT milling holder on turret and best-in-class
high power rotary tool motor carry out high
productivity in milling<M type model>
IMPROVED OPERATIONAL EFFICIENCY,
INCLUDES IMPROVED CHIP DISPOSAL
AND OPERATION PANEL
• Highly steep bed structure for easy
chip disposal
• Intuitive and user-friendly DN
Solutions FANUC i PLUS CNC
• Pendant type operation panel with
easy movement of locating and
height adjustment according to
operator’s workflow

BASIC STRUCTURE
The integral box guideway bed design delivers vibration-free performance and ensures heavy duty and high
precision cutting over long periods of operation.
The machine frame and structure have been
redesigned to accommodate the enhanced

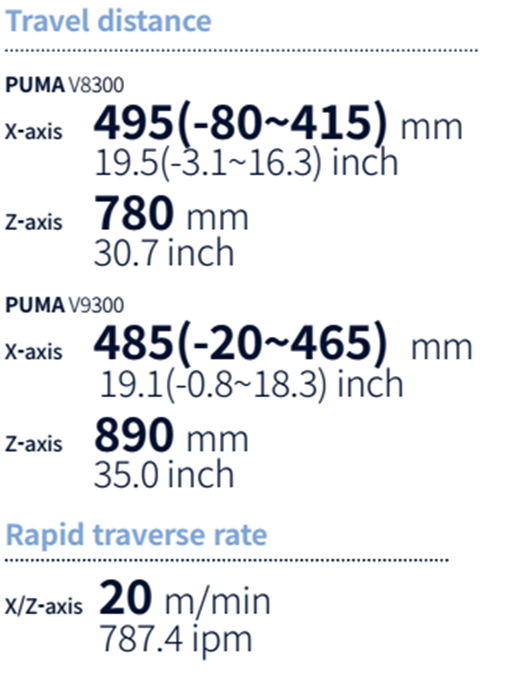

specifications. The rapid traverse is increased to 20
m/min (787.4 ipm) for higher productivity.
