Product code: SMX2100ST

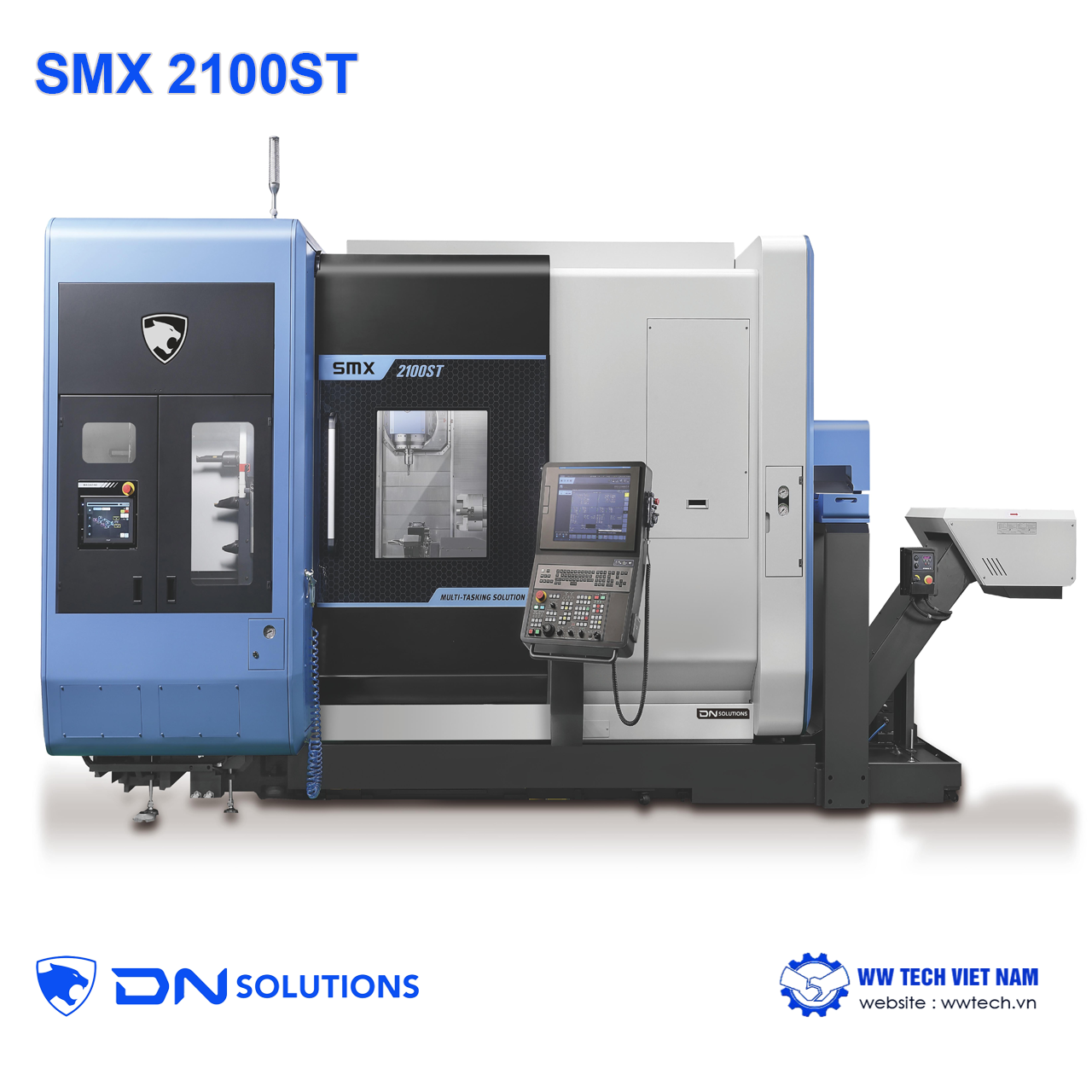

DN Solutions SMX 2100ST Multi-Tasking CNC Turning Center
The SMX 2100ST is a high-performance, multi-axis CNC multi-tasking turning center. With a total of nine axes available on the SMX series, there are virtually no limits to what you can create.
Dubbed the "all-in-one machining center", the SMX 2100ST perfectly combines turning, milling, and drilling into a single system. It is fine-tuned to meet single-end machining needs with optimized performance, a powerful Y-axis, state-of-the-art control technology, and single set-up manufacturing capabilities. Compared to the PUMA MX series, the SMX is equipped with larger chuck sizes while delivering the same high performance and impressive flexibility. These machines truly make a difference.
🔹High Precision
🔹Multitasking Capability
🔹Faster Machining
🔹Shorter Setting Time

details
Downdload document

Highlights

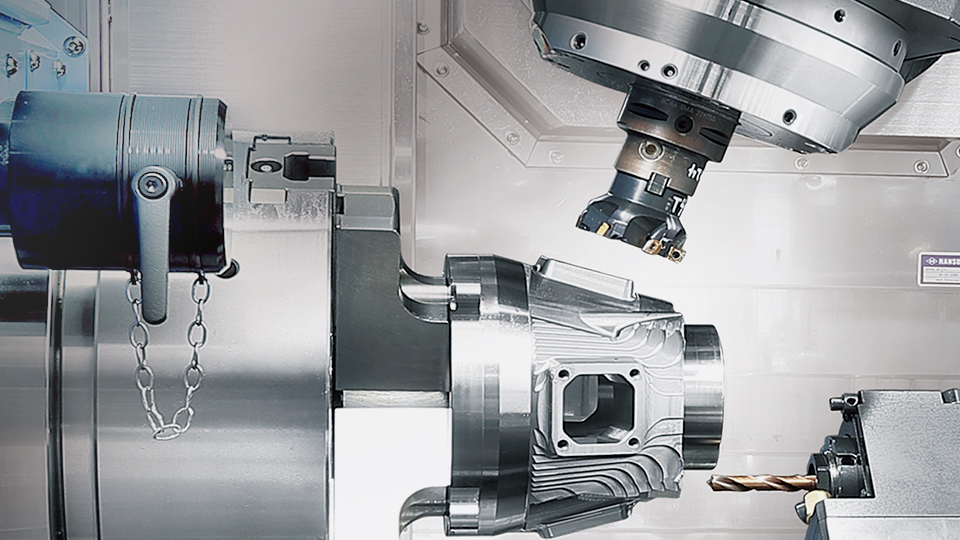

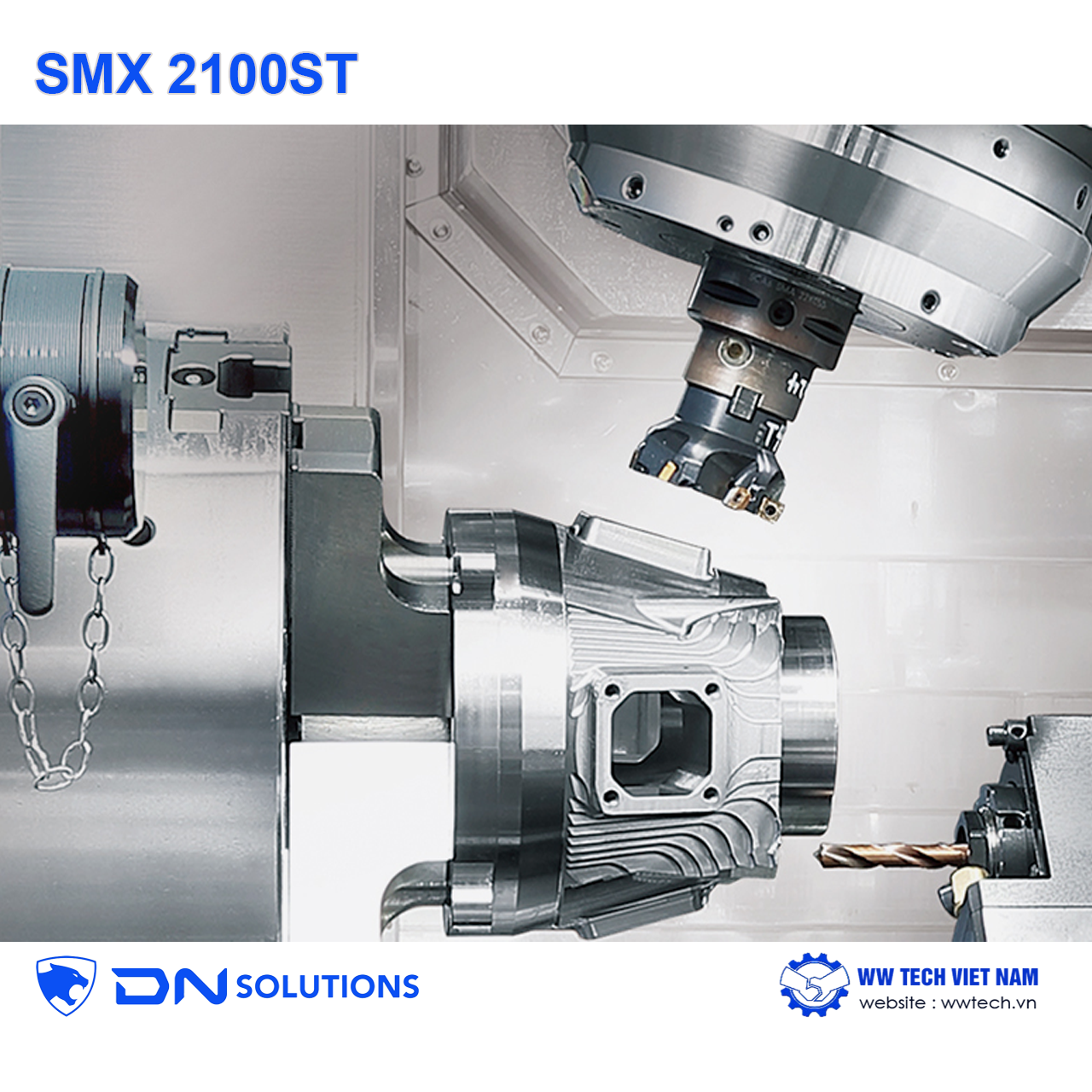

Powerful multi-tasking capacity for higher productivity

SMX 2100 Powerful multi tasking capacity for higher productivity

- Even higher multi-tasking capability is available from SMX machines through the combination of the left and right spindles, the B-axis milling function and a lower turret ideal- making the machines ideal for complex, high-precision machining.
- Orthogonal structure maximizes machining space.
- 12 station high-rigidity servo turret ensures accurate and powerful cutting performance, and outstanding process reliability.

Outstanding control delivers higher precision

SMX 2100 Outstanding control delivers higher precision

- 0.0001-degree precision control function of B-axis and C-axis enables high-precision machining.
- Minimized thermal displacement of the spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even during long machining runs and extended us

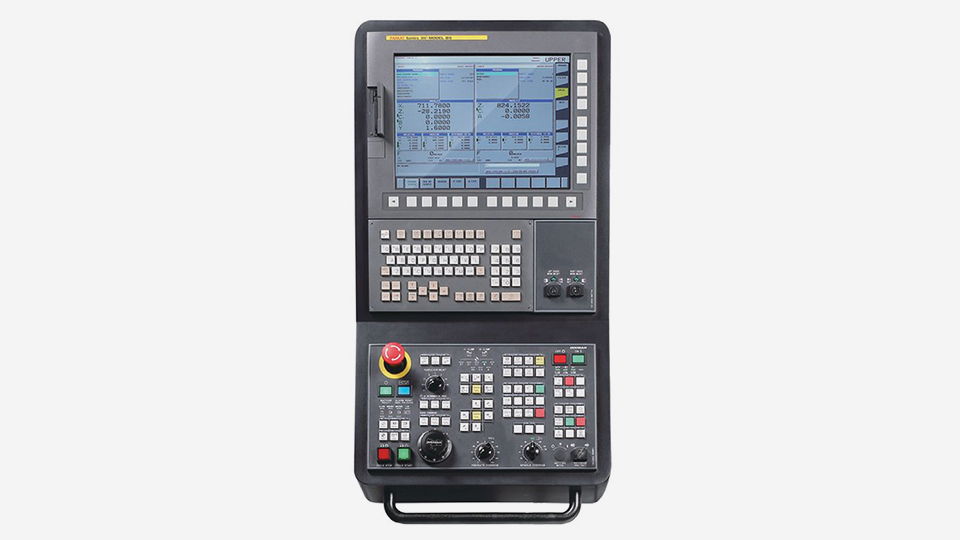

Easy and convenient functions

- Front located tool magazine and convenient ATC operation panel make it easy to change and replace tools, and monitor and check tool change operations.
- Side-to-side movable swivelling operation panel with adjustable height settings. User friendly work guidance function.
- User friendly work guidance function : FANUC 31i/32i PLUS và SIEMENS 840D, CUFOS, Sketch Cycle.

Multi-Tasking Capabilities of DN Solutions SMX Series

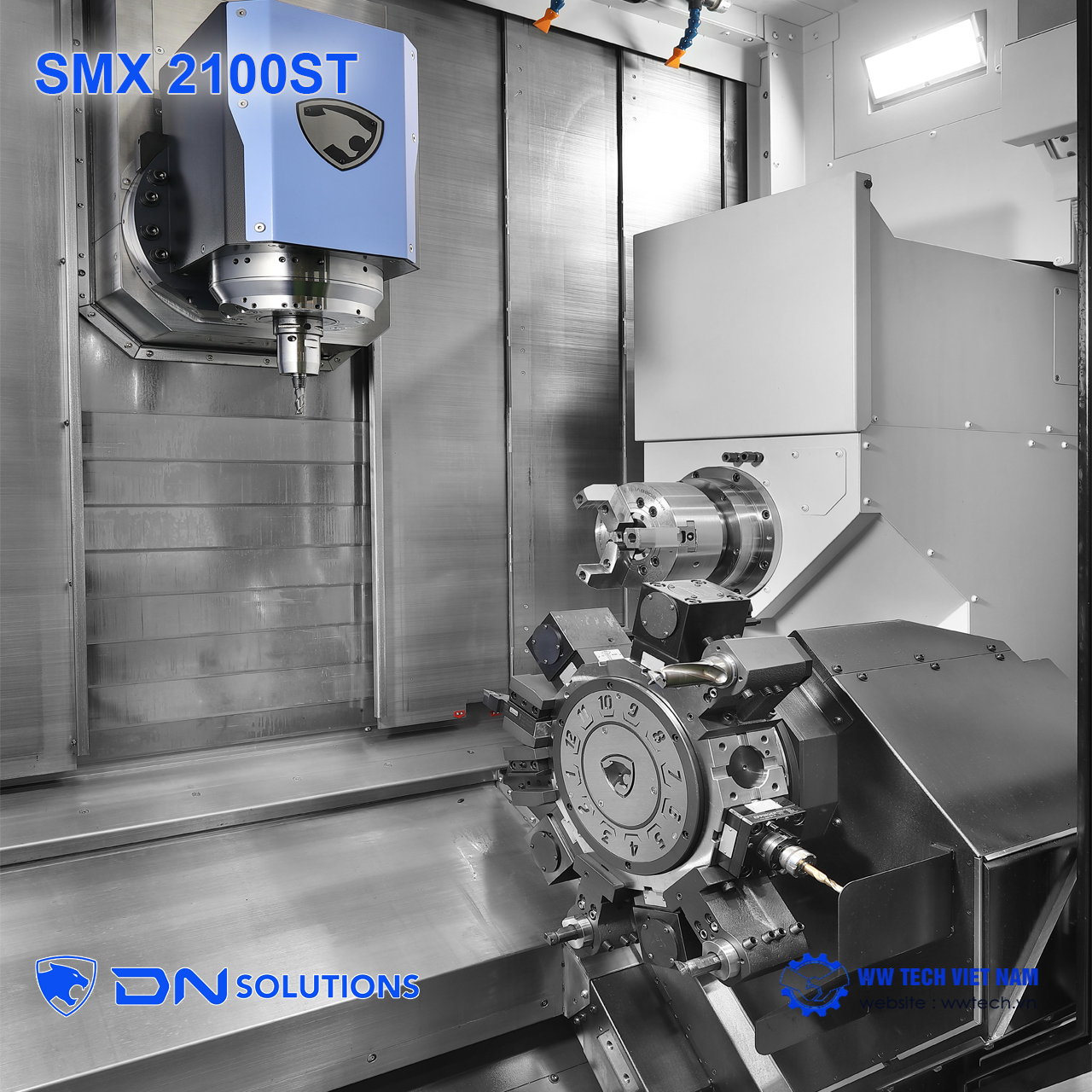

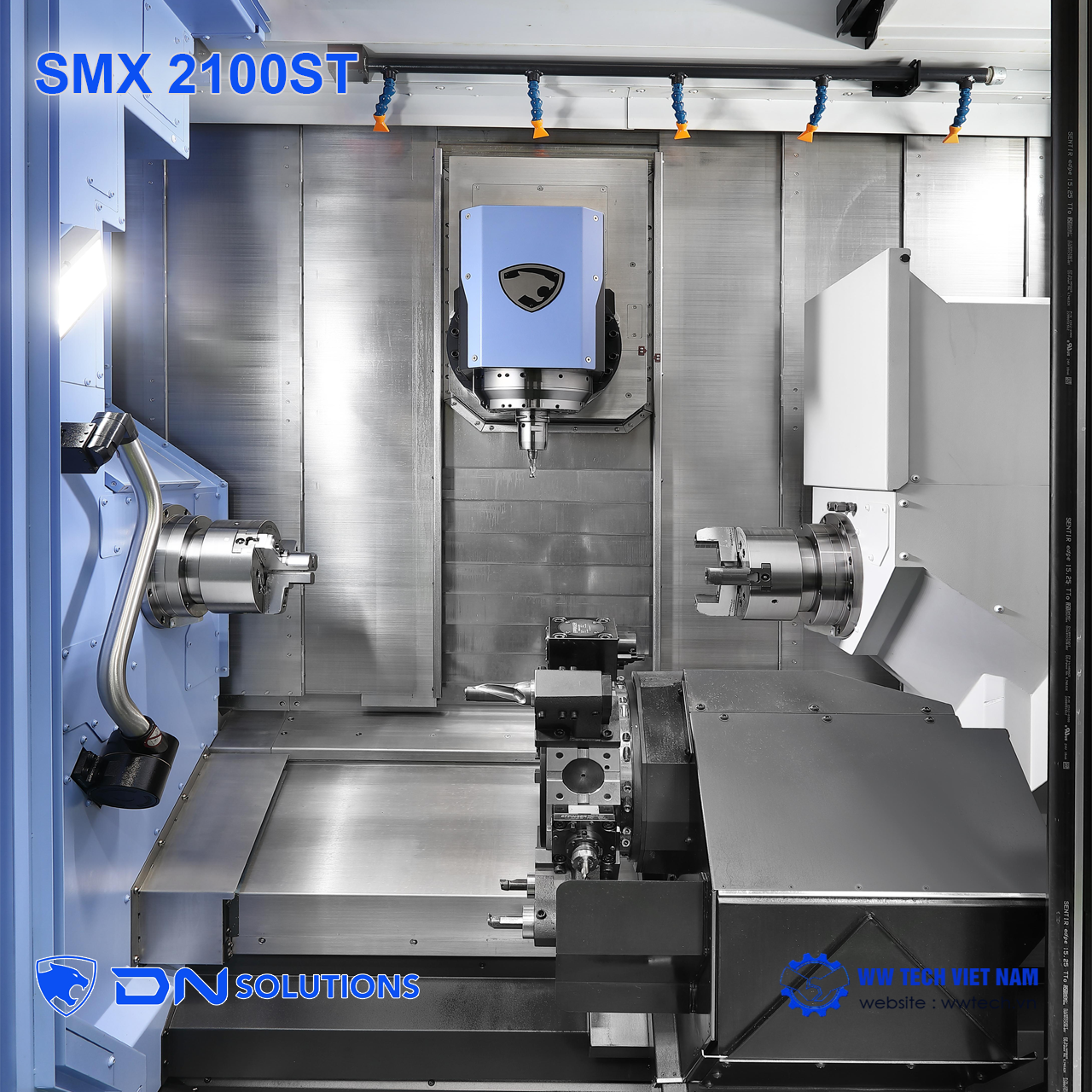

The multi-tasking functionalities of the SMX series seamlessly orchestrate complex machining operations within a single system. This is achieved through the flexible integration of the left spindle, right spindle, milling spindle (B-axis), and lower turret:
🔹Turning Functionality: Capable of performing Outer Diameter (O.D.) cutting, Inner Diameter (I.D.) cutting, U-drilling, and I.D. threading.
🔹Milling Functionality: Includes face milling, end milling, O.D. milling, O.D. hole machining, ball-end milling, and angular machining.
🔹Drilling & Tapping Functionality: By coordinating the C-axis (of the left/right spindles), the B-axis (of the milling spindle), and the Y-axis, the machine easily executes drilling, tapping, and milling at any desired angle.
🔹Right Spindle Operations: The right spindle actively participates in parting off, face cutting, angular machining, and end face hole machining & tapping to fully finish the secondary side of the workpiece.
🔹Simultaneous 5-Axis Machining: Integrated with Tool Center Point (TCP) control technology, this feature allows smooth, automatic tool path interpolation to machine precise angles, sculpted contours, and complex curved surfaces (such as turbine blades and aerospace impellers).
🔹Synchronized Cutting: The machine can simultaneously control multiple spindles and turrets for parallel processing. It consolidates traditional turning and milling processes into a single set-up, minimizing cycle times and maximizing productivity.

Product Specifications

Specifications	SMX 2100	SMX 2100ST	SMX 2100LST
CAPACITY
Chuck size	8 inch	8 inch	8 inch
Max. Turning Diameter	600 mm	600 mm	600 mm
Max. Turning Length	1040 mm	1040 mm	1540 mm
Bar Working Diameter	65 mm	65 mm	65 mm
Left Spindle
Max. Spindle Speed	5000 r/min	5000 r/min	5000 r/min
Max. Spindle Power	22 kW	22 kW	22 kW
Max. Spindle Torque	467 N·m	467 N·m	467 N·m
Right Spindle
Max. Spindle Speed	N/A	5000 r/min	5000 r/min
Max. Spindle Power	-	22 kW	22 kW
Max. Spindle Torque	-	467 N·m	467 N·m
Milling Spindle
Max. Spindle Speed	12.000 r/min	12.000 r/min	12.000 r/min
Max. Spindle Power	22 kW	22 kW	22 kW
Max. Spindle Torque	-	467 N·m	467 N·m
Lower Turret	N/A	12 stations	12 stations
Dimensions & Weight
Length	4845 mm	4845 mm	5630 mm
Width	2770 mm	2770 mm	2770 mm
Height	2777 mm	2777 mm	2777 mm
Weight	14.900 kg	15.800 kg	17.100 kg

DN Solutions SMX 2100LST CNC Mill-Turn Machine

- Dubbed a "multi-tasking machining center," the SMX 2100LST perfectly combines turning, milling, and drilling in a single system.

- With 2 spindles and 2 turrets, this model allows simultaneous machining of both ends of a workpiece, shortening time and increasing productivity, especially suitable for complex products in the automotive, aerospace, and industrial equipment industries.

DN Solutions SMX 2100ST CNC Mill-Turn Machine

- Similar to the LST version but refined to suit single-end workpiece machining with optimal efficiency, the SMX 2100ST retains its outstanding advantages: powerful Y-axis, modern control technology, and the ability to complete products in a single setup.

- This is an ideal choice for businesses requiring high quality and consistency in machining.
