• Lynx 2100/2600 (Y Axis) series

  • Post on 22-06-2025 06:05:02 PM - 493 Views
  • Product code: P000008

  • 2 Axis Horizontal Turning Center with Y axis

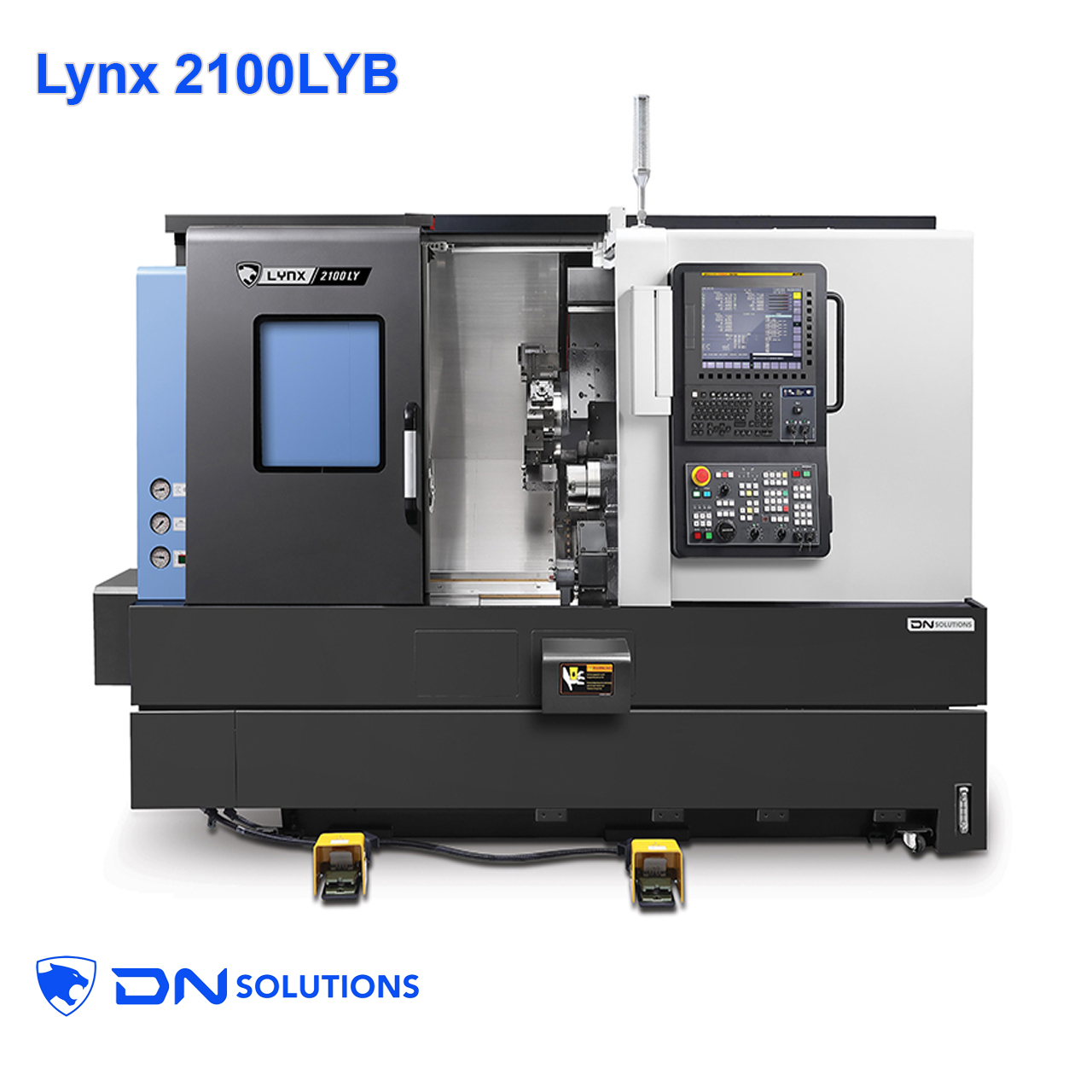

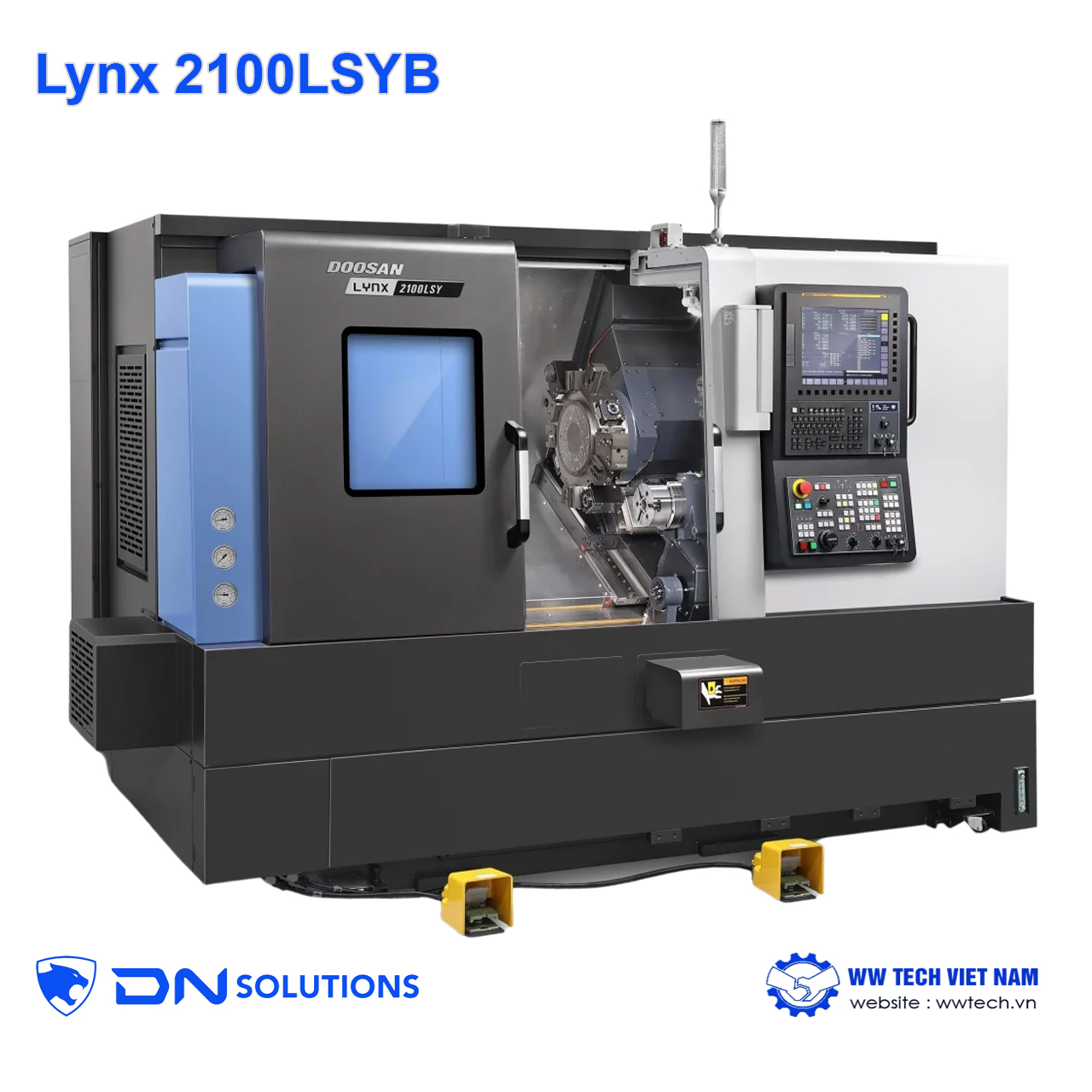

    Lynx 2100/2600 (Y axis) series : Lynx 2100LY,
    Lynx 2100LYA,Lynx 2100LSYA,Lynx 2100LYB,Lynx 2600Y,Lynx 2600SY
    6"~10" High-performance Compact Turning Center

    The newly-designed Lynx 2100 and Lynx 2600 2-axis horizontal turning centers have a small footprint but deliver huge productivity gains. The machines are tough, reliable and get down to business fast.
    🔷 Easy to Operate
    🔷 High Productivity
    🔷 Excellent Machining Capability
    🔷 Easy Maintenance

Highlights

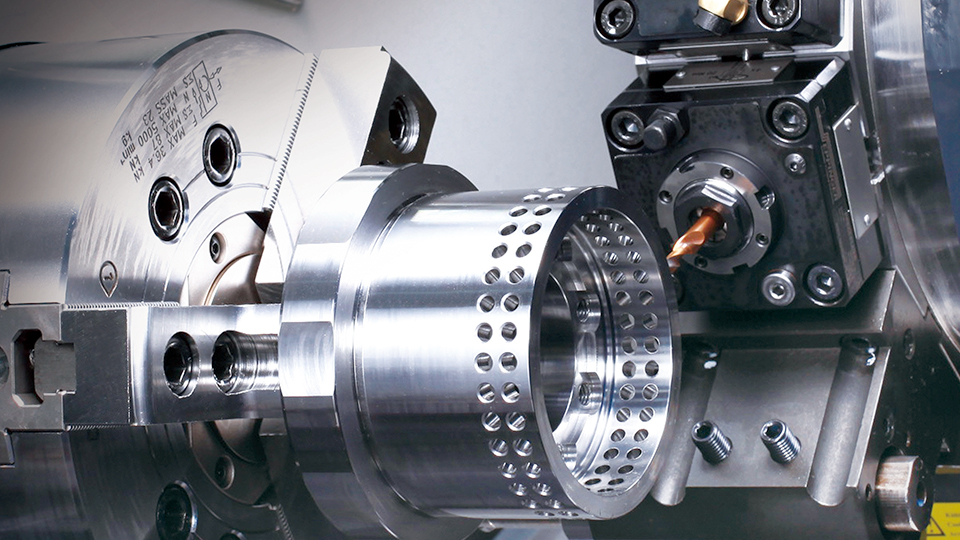

Superior machining performance
- Equipped with a 15kW high-power motor (Lynx 2600Y/SY : 18kW)
- Max. Turning Diameter : 300mm / Max. Turning Length : 510mm (Lynx 2600Y/SY : 380mm / 610mm)
- Excellent cutting capability

Superior machining performance

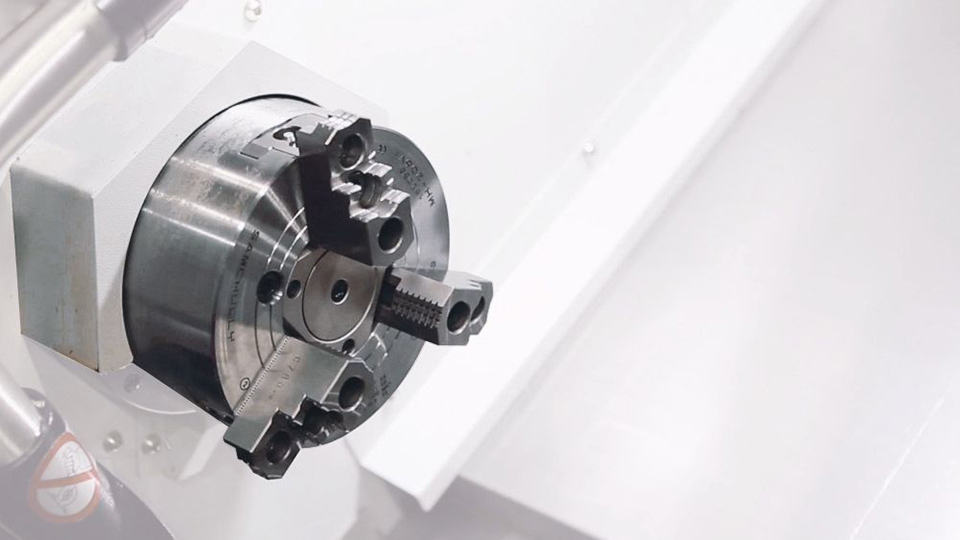

High reliability
- Low vibration/noise spindle
- Servo-driven turret
- Full slideway cover to prevent leakage and chip ingress

High reliability

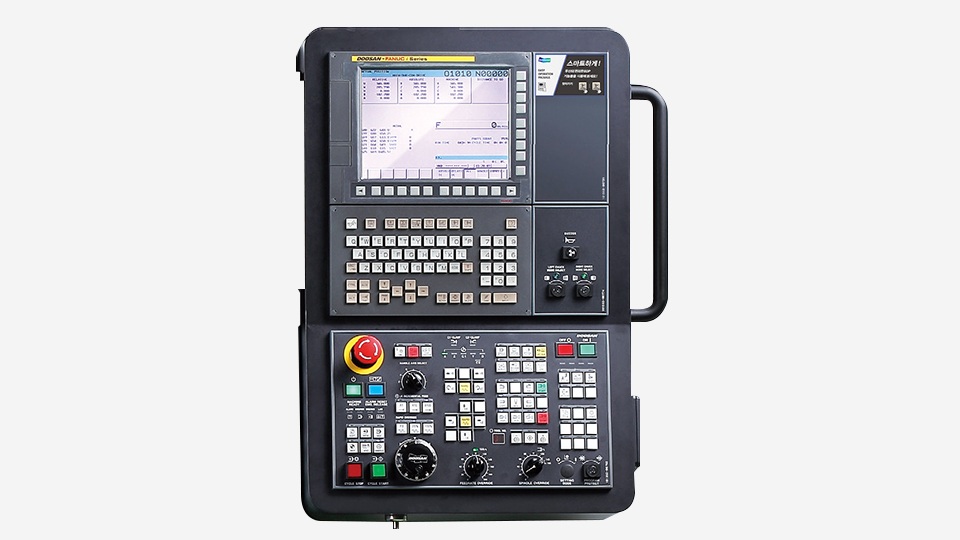

Improved User Convenience
- EOP
- Grease type lubrication
- Rear side double-purpose chip conveyor

Improved User Convenience

Product Specifications

   METRIC Lynx 2100LYA  Lynx   2100LSYA  Lynx  2100LYB  Lynx 2100LSYB  Lynx 2600Y Lynx 2600SY
  CAPACITY
 Chuck  size 6 inch  6 inch  8 inch 8 inch 10 inch 10 inch
  Maximum turning diameter 300 mm  300 mm  300 mm 300 mm 380 mm 380 mm
  Maximum turning length 510 mm  510 mm  510 mm 510 mm 610 mm 610 mm
  TRAVELS
  X-Axis Rapid Traverse 30 m/min  30 m/min  30 m/min  30 m/min  30 m/min 30 m/min
  Z-Axis Rapid Traverse 36 m/min  36 m/min  36 m/min  36 m/min  30 m/min 30 m/min
   X axis travel  distance 205 mm  205 mm  205 mm  205 mm  250 mm 250 mm
   Y axis travel  distance 105 mm  105 mm  105 mm  105 mm  105 mm 105 mm
   Z axis travel  distance 560 mm  560 mm  560 mm  560 mm  680 mm 680 mm
  MAIN SPINDLE
  Maximum spindle speed 6000 rpm  6000 rpm  4500 rpm  4500 rpm  3500 rpm 3500 rpm
  Maximum spindle power 15 kW  15 kW  15 kW  15 kW  18.5 kW 18.5 kW
  Maximum spindle torque 127 N·m  127 N·m  169 N·m  169 N·m  403 N·m 403 N·m
  TURRET
  Number of knives 12 of  12 of  12 of  12 of  12 of 12 of
  Number of rotations
  r/min		 6000 rpm  6000 rpm  6000 rpm  6000 rpm  6000 rpm 6000 rpm
 DIMENSIONS
 Length 2880 mm  2880 mm  2880 mm  2880 mm  3425 mm 3425 mm
 Height 1921 mm  1921 mm  1921 mm  1921 mm  2095 mm 2095 mm
 Width 1711 mm  1711 mm  1711 mm  1711 mm  1920 mm 1920 mm
 Weight 3850 kg  4150 kg  3900 kg  4200 kg  5750 kg 6000 kg

Lynx 2100LY



Lynx 2100LY D300 CNC

Lynx 2600Y/SY



🧰 WW Tech Vietnam is an authorized distributor.
We are committed to providing customers with: 100% genuine products, clear origin.
🔷 Fast delivery time, meeting production schedules.
🔷 Optimal and competitive costs in the market.
🔷In-depth technical services, long-term support with a team of senior engineers, highly  ecialized engineers trained abroad, knowledgeable in DN Solutions machine lines and common CNC control systems.
🔷 Clear warranty policy, 24/7 technical support, quick response to all customer requests.
📢Precision mechanical processing enterprises, industrial equipment manufacturing plants, molds, electronic components. Industrial parks, export processing zones, CNC processing centers....interested in products : Lynx 2100/2600 (Y axis) series, Lynx 2100LY
Lynx 2100LYA,Lynx 2100LSYA,Lynx 2100LYB,Lynx 2600Y,Lynx 2600SY
To learn more details about this product.
Please contact us immediately for support.
