DVF 6500 Specifications | Specifications | Value |
| Travels (X / Y / Z axis) | 750 / 785 / 600 mm |
| Travels (A / C axis) | A axis: -120° ~ +120° / C axis: 360° |

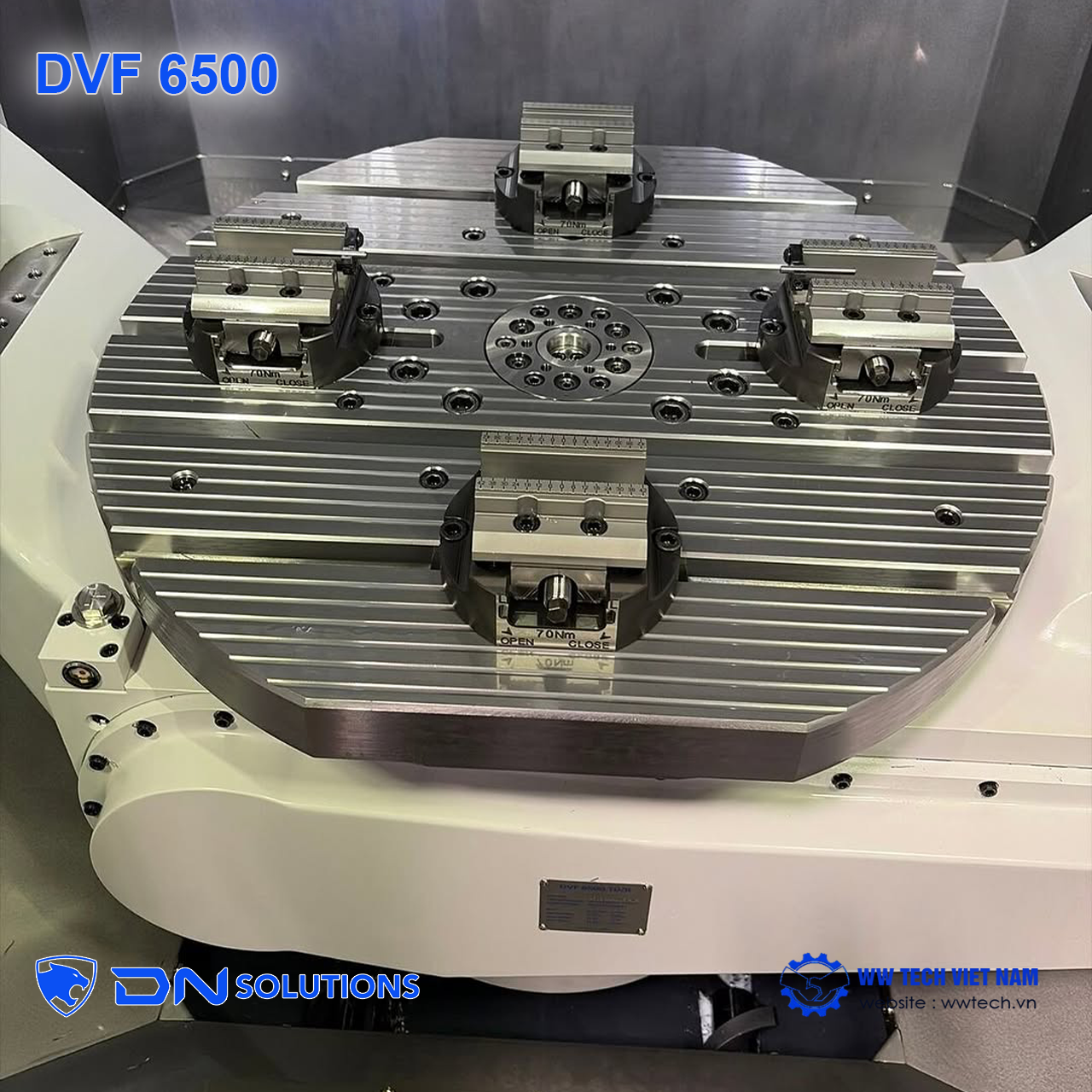

| Table size | Round table: ø650 x 600 mm (Option square table: ø500 mm) |
| Max. workpiece size | ø840 x H500 mm |
| Max. workpiece weight | 600 kg (Tandem drive option: 1000 kg, Automation: 500 kg) |
| Max. spindle speed | 12000 r/min (Option: 18000 r/min) |
| Max. spindle power (FANUC) | 22 / 18.5 kW |
| Max. spindle torque (FANUC) | 204 N·m (118 N·m for 18000 r/min option) |
| Rapid traverse (X / Y / Z axis) | 45 / 45 / 45 m/min |
| Rapid traverse (C axis) | 50 r/min (RGC) or 80 r/min (Direct Drive/DDM) |
| Tool shank | ISO #40 |
| Tool storage capacity | 40 ea (Option: 60 or 120 ea) |
| Max. tool diameter / length | Continuous: ø75 mm (w/o adjacent tools: ø125 mm) / Length: 300 mm |
| Max. tool weight | 8 kg |
| Tool-to-Tool time | 1.0 sec (at 60Hz) / 1.5 sec (at 50Hz) |
| Coolant tank capacity | 650 L |
| Machine dimensions (L x W x H) | 3700 x 2450 x 3100 mm |
| Machine weight | 14500 kg |
| NC System (Control) | CUFOS, HEIDENHAIN TNC 640/TNC 7, SIEMENS Sinumerik One, FANUC 31iB5 Plus |
Outstanding Advantages, Machining Materials , and Practical Applications of the High-End 5-Axis Vertical Machining Center DVF 6500 (including the integrated milling and turning version DVF 6500T) 1. Outstanding Advantages

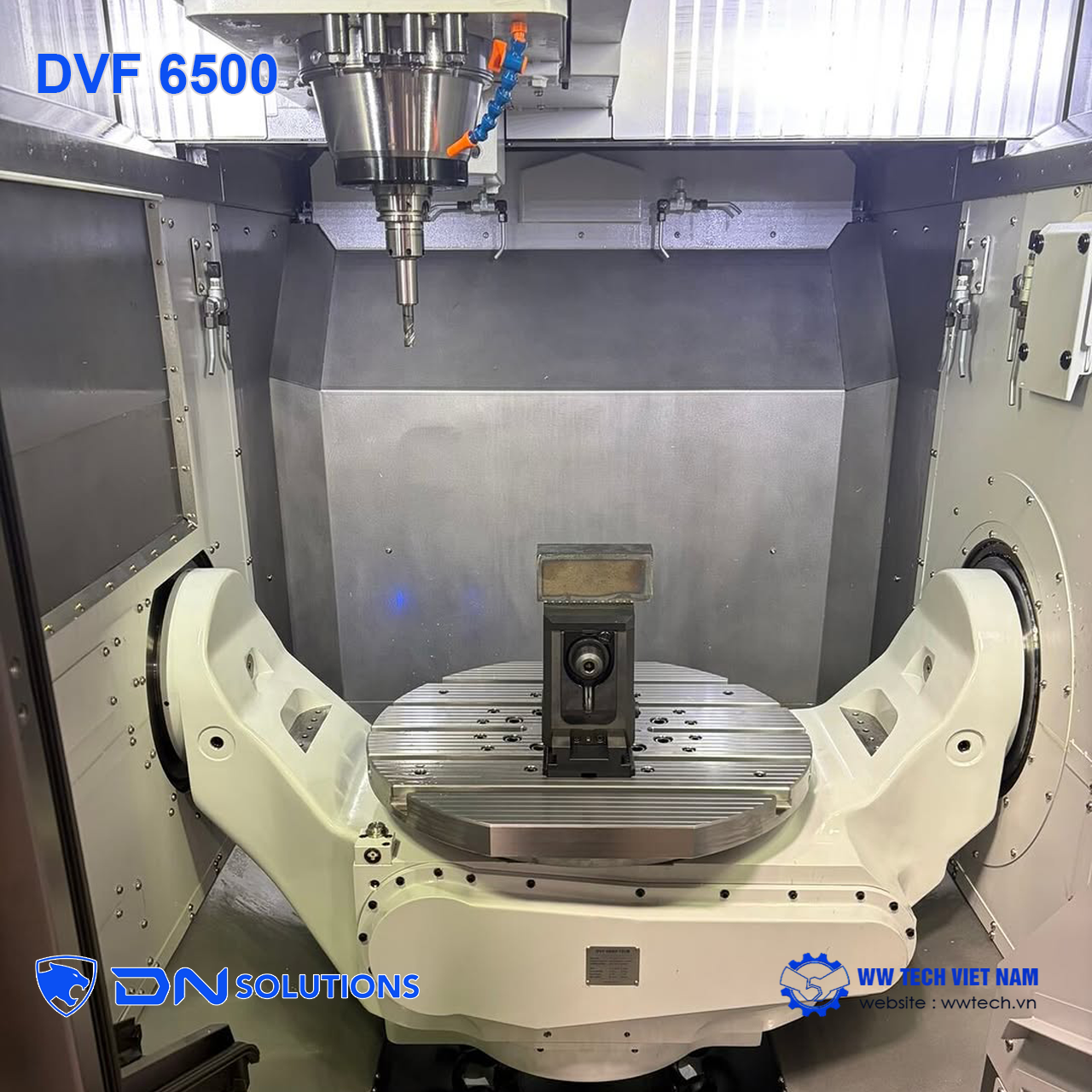

- Ultra-rigid Machine Structure: The machine features a rigid travelling column design combined with a fully integrated rotary tilting table, providing exceptional rigidity and cutting stability.
- Single Setup Efficiency: The simultaneous 5-axis machining capability allows complex parts to be finished in one setting. Specifically, the DVF 6500T model integrates a table turning function with a Direct Drive C-axis reaching up to 1000 r/min, offering ultimate flexibility for multi-tasking mill-turn operations in a single setup.
- High Speed and Powerful Cutting Performance: Equipped with a 12000 r/min high-speed spindle as standard, with an 18000 r/min option. The spindle motor power ranges from 22 kW (FANUC) up to 30/24 kW (SIEMENS / HEIDENHAIN), ensuring rapid and massive material removal.
- Absolute Precision Control: The machine comes standard with integrated thermal compensation systems for the spindle and structure, spindle cooling, and a ballscrew shaft cooling system. Additionally, it supports Intelligent Kinematic Compensation (IKC) using a touch probe to automatically measure and optimize machine kinematics.
- Automation-Ready Framework: The machine is designed for lights-out manufacturing and can be seamlessly integrated with an Auto Pallet Changer (APC) supporting 2 or 4 pallets, or the multi-level DN Round Storage (DRS / RPS 6500) which accommodates 7 to 21 pallets.
2. Machining Materials
- Superalloys and Heat-Resistant Materials: Highly capable of cutting tough aerospace alloys used in jet engine components.
- Medical Implant Materials: Suitable for processing specialized medical materials (e.g., Titanium, medical-grade stainless steel) that demand high precision and a clean machining environment.
- Aluminum and Aluminum Alloys: Ideal for high-speed milling of aluminum structural parts and impellers, taking advantage of the high spindle speed and rapid traverse rates.
- Steel, Carbon Steel, and Alloy Steel: Perfectly suited for roughing or heavy cutting applications in die and mold making and general mechanical machining.
3. Practical Applications
- Aerospace Industry: A primary application for this machine. The DVF 6500 excels at machining large aerospace jet engine components. For maximum dynamics, the A-axis RGC (Roller Gear Cam) tandem drive configuration is the optimal choice for machining complex components like blisks (brisks) and impellers.
- Medical Industry: Dedicated to manufacturing small, high-precision medical parts and implants with extremely tight tolerances.
- Die & Mold Industry: The Direct Drive C-axis rotary table option enables continuous operation with superior dynamics, making it perfect for generating 3D complex contours in mold making.

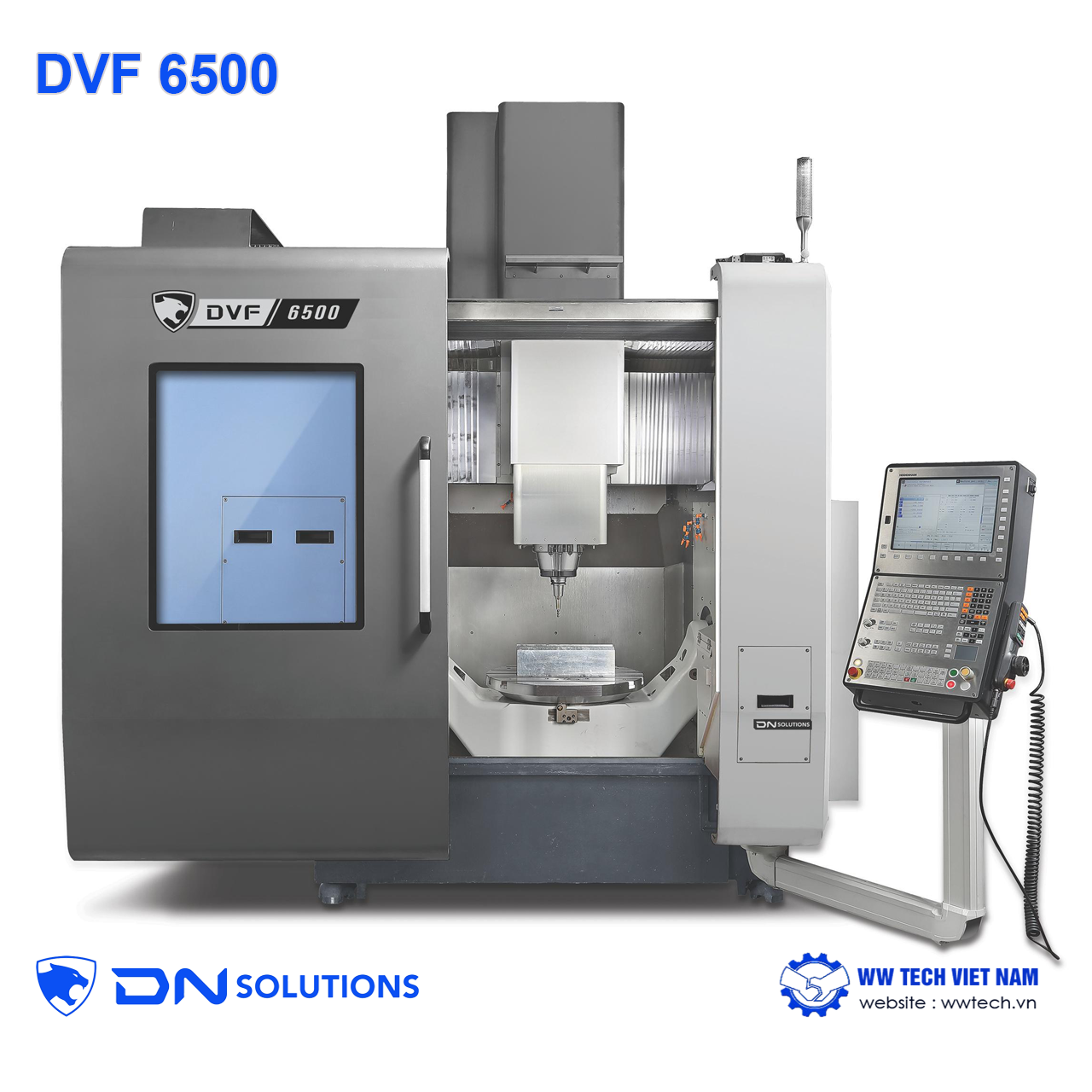

- Job Shops: Meets the demanding requirements of versatile job shops handling medium to large parts. With the A-axis RGC tandem drive supporting a maximum table load of up to 1000 kg, the machine effortlessly handles heavy-duty cutting operationsDVF 6500 PREMIUM SIMULTANEOUS 5-AXIS MACHINING CENTER DVF 6500 with integrated RPS
RPS (Round Pallet System) – also known as DN Round Storage 6500 (RPS 6500) – when integrated into the DVF 6500 5-axis milling machine, is a multi-level automated pallet storage solution, optimally designed to increase unmanned machine runtime.
Equipped with the RPS 6500 (DN Round Storage 6500) system, the DVF 6500 machine becomes a complete automated production center, perfectly suited for small and medium-sized mass production, allowing factories to maintain continuous machining day and night (lights-out machining) without the need for constant operator intervention. 🧰 WW Tech Vietnam is an authorized distributor of DN Solutions.
